User Manual of Digital Video Recorder
60

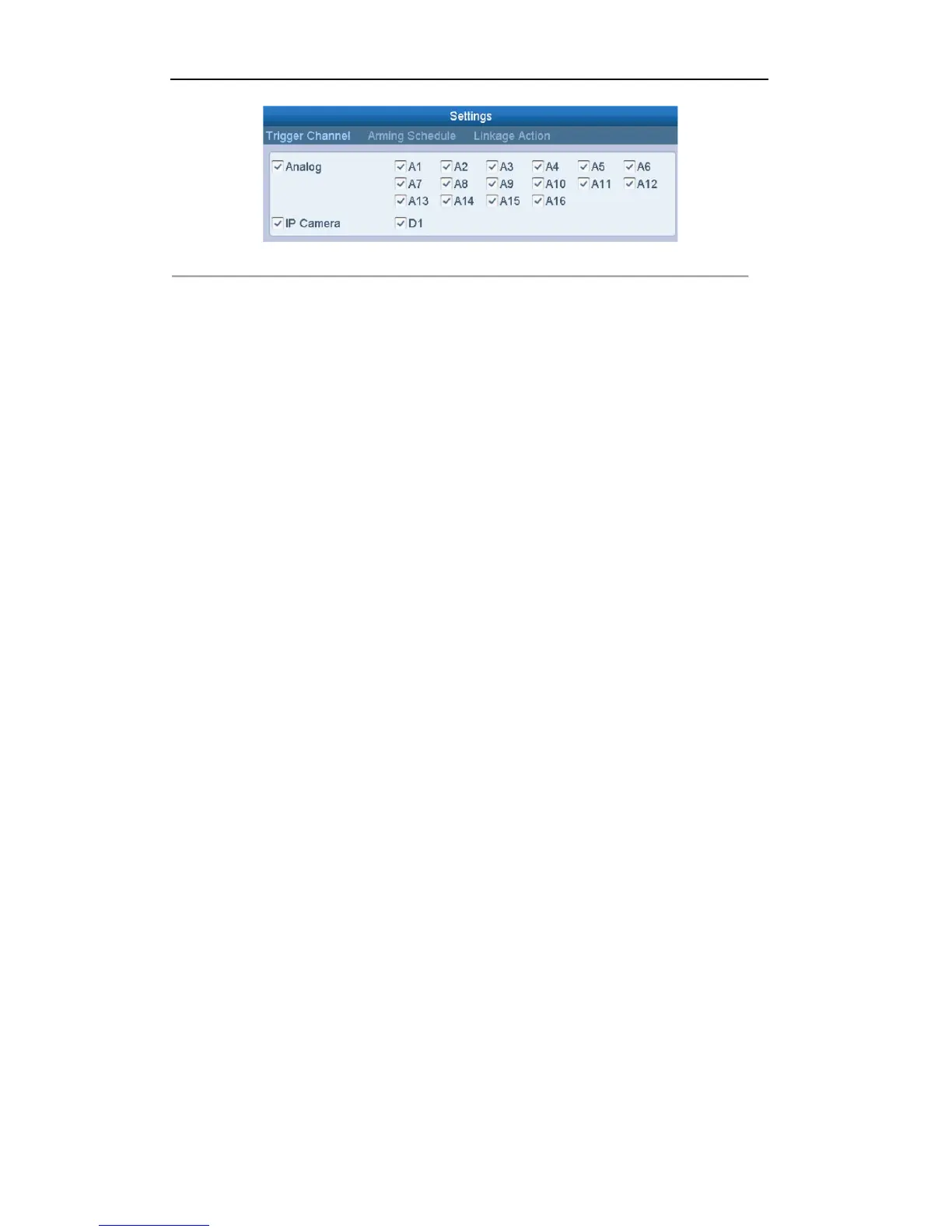

Figure 5. 15 Motion Detection Settings
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3. Configure the schedule.
Please refer to the step 4 of Chapter 5.2 Configuring Record Schedule
, while you may choose Motion as
the record type.

HIKVISION DS-2CD7153-E Specifications

General

Type	IP security camera
PTZ control	-
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Field of view (FOV) angle	68 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.8
Fixed focal length	2.8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
