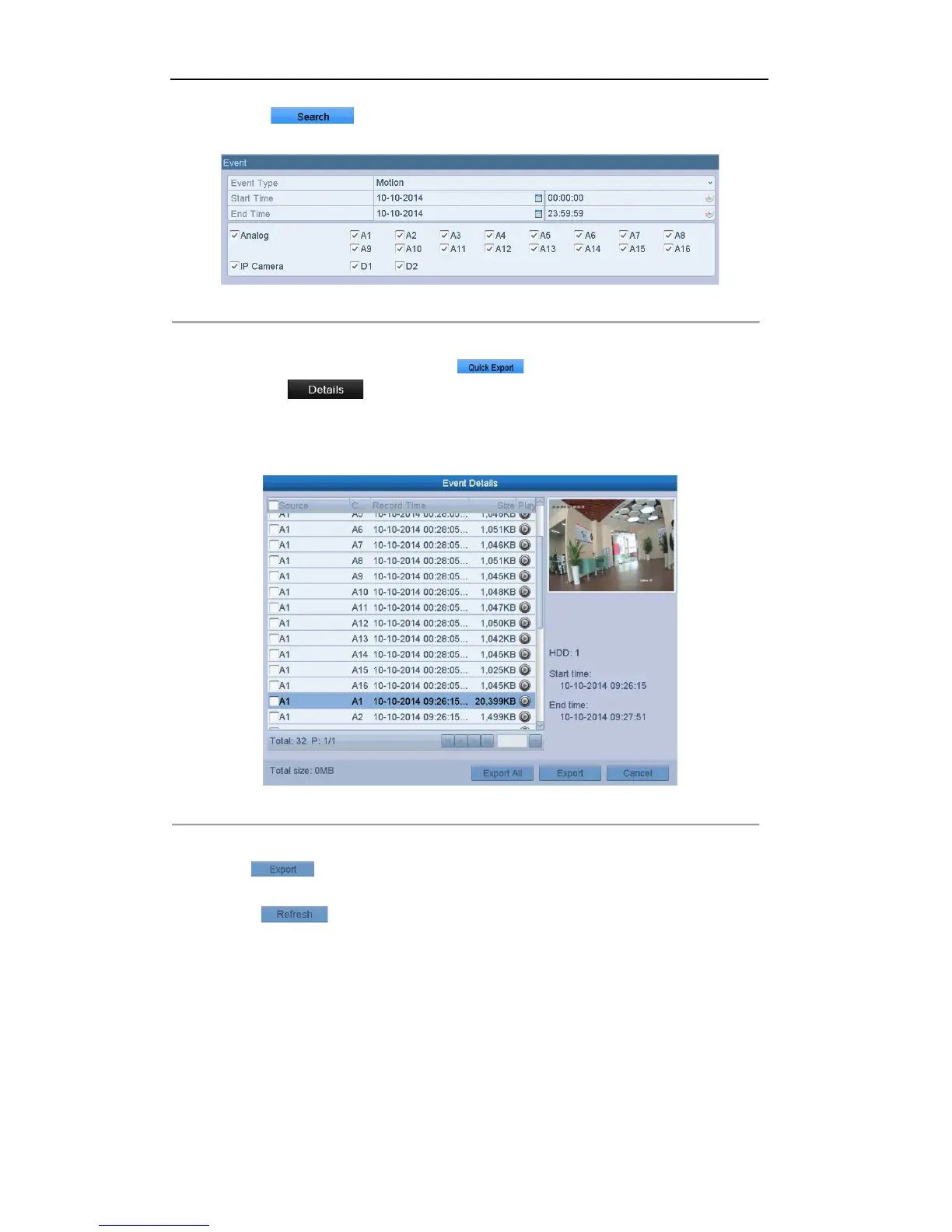

User Manual of Digital Video Recorder
92
3) Click to enter the Search Result interface.
Figure 7. 12 Event Search for Backup
2. Select record files to export.
1) Select an alarm input in the list and click to enter Export interface.
2) Clicking will take you to the interface with detailed information of all channels
triggered by the selected alarm input. You can view detailed information of the record file, e.g. start time,
end time and file size.
Note: The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7. 13 Event Details Interface
3. Export.
Click and start backup.
Note: If the inserted USB device is not recognized:
Click .
Reconnect device.
Check for compatibility from vendor.
You can also format USB flash drive or USB HDDs via the device.
