HIKVISION DS-2CD7164-E Quick Operation Guide

Quick Operation Guide of Network Camera
21
2
Lock Screw
Secure the sun shield
3
Cables
Power/Video Cable
1.4 Appearance Description of Cube Camera
1.4.1 Cube Camera I
Camera description:

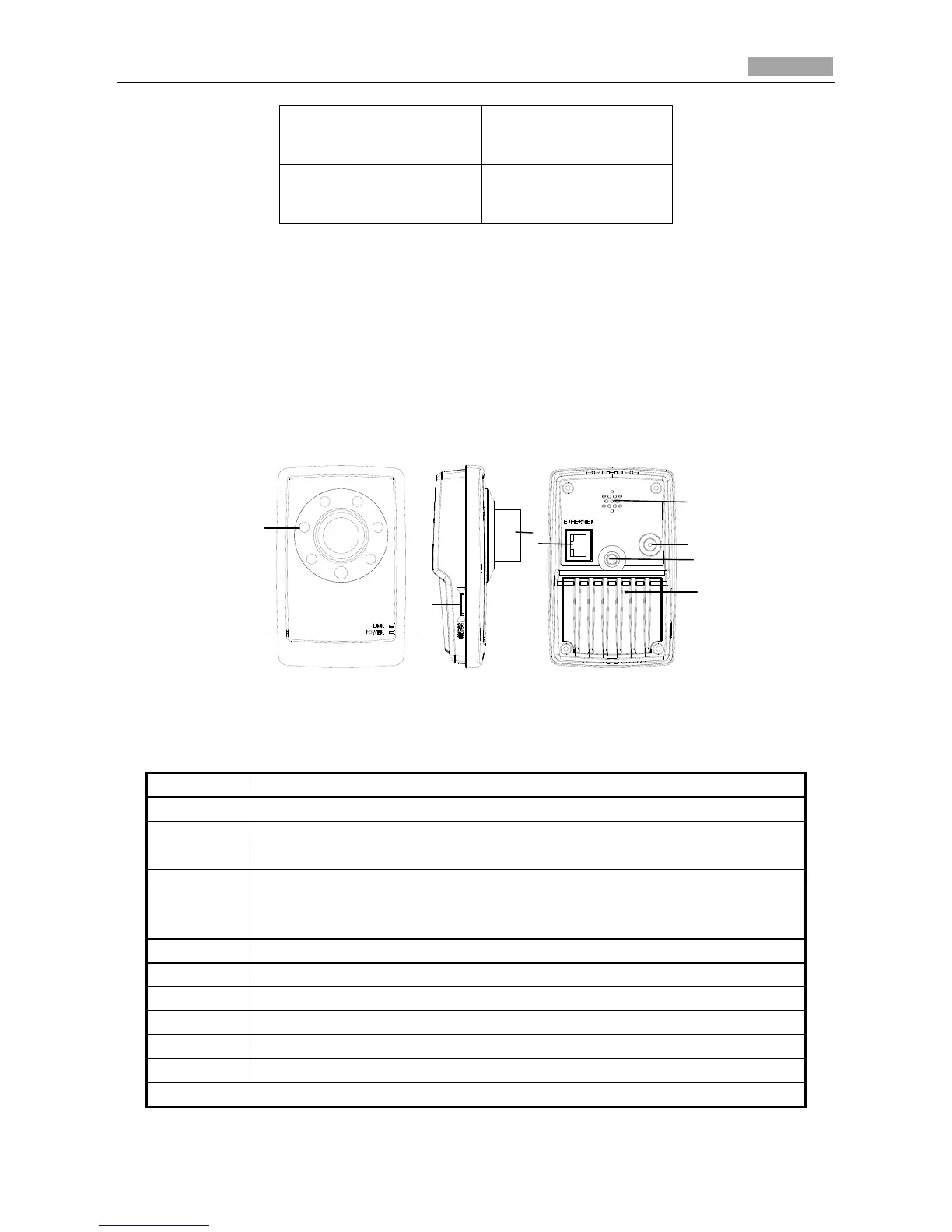

Figure 1-33 Overview
Table 1-15 Description
No.
Description
1
Microphone
2
Infrared light (Optional)
3
Micro SD card slot
4
LINK: Network status LED indicator.
LED indicator is solid yellow when network connection is functioning
properly.
5
Power LED indicator, It is solid red when power is applied to the unit.
6
Lens
7
ETHERNET: 10M / 100M self-adaptive Ethernet interface
8
RESET: Reset button
9
Speaker
10
Power supply interface
11
Screw hole, used to fix the camera to the bracket
1
2
4
5
3
6
7
8
9
10
11

HIKVISION DS-2CD7164-E Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Minimum illumination	0.01 lx
Field of view (FOV) angle	73 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	2.0
Fixed focal length	8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
