Quick Operation Guide of Network Camera
1
Chapter 1 Appearance Description
There are ten physical structures of network cameras, Box camera I, Box camera II, Box camera III,
Dome camera I, Dome camera II, Dome camera III, Dome camera IV, Bullet Camera, Cube Camera
and Mini Dome Camera.
1.1 Appearance Description of Box Camera
1.1.1 Box Camera I
Camera description:

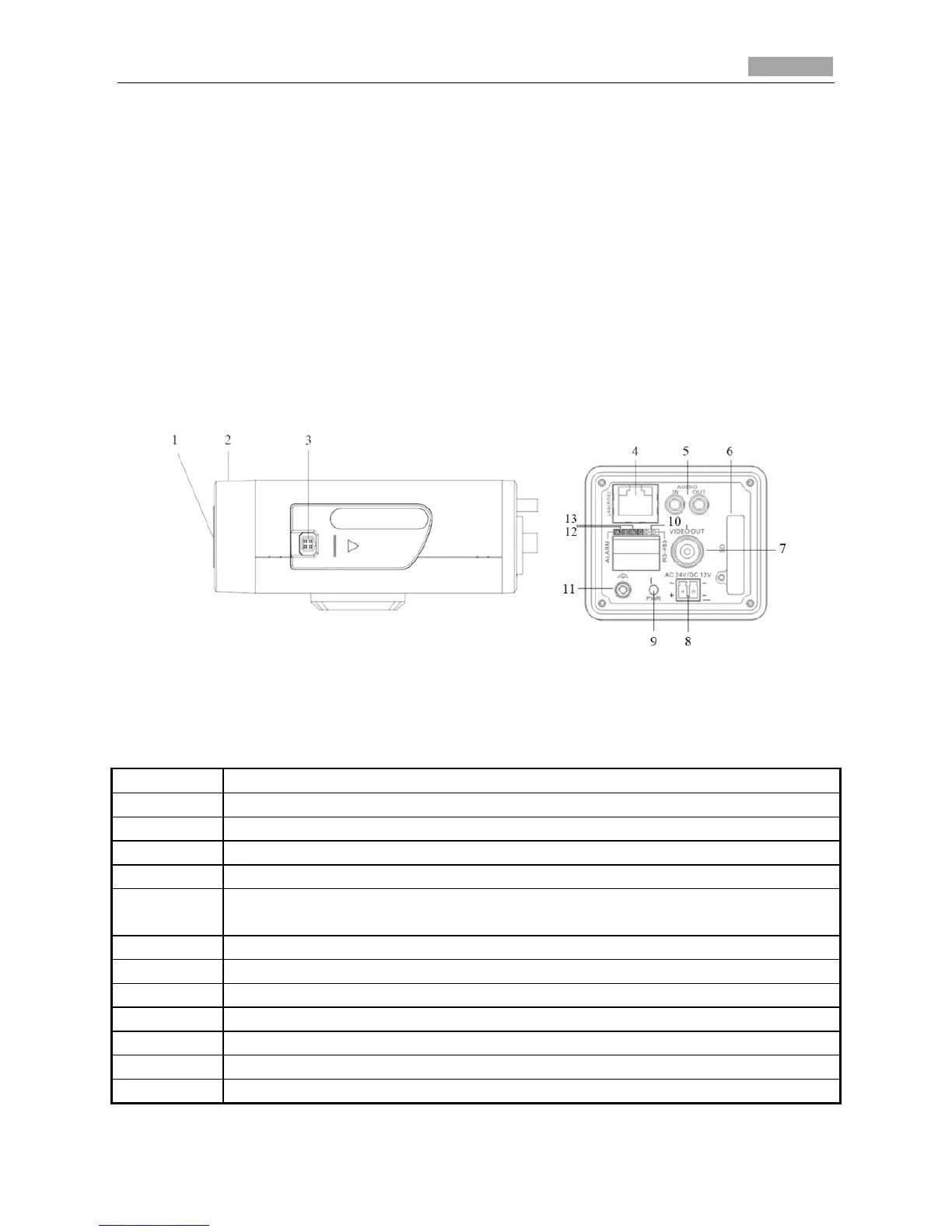

Figure 1-1 Overview
Table 1-1 Description
No.
Description
1
CS Lens mount
2
Back focus ring
3
Auto-iris interface
4
10M/100M self-adaptive Ethernet interface
5
AUDIO IN: Audio input interface
AUDIO OUT: Audio output interface
6
SD: SD card slot
7
VIDEO OUT: Video output interface
8
Power supply interface
9
PWR: Power LED indicator
10
D+, D-: RS-485 interface
11
Ground
12
1A, 1B: Alarm output interface
