HIKVISION DS-2CD852MF-E

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
8

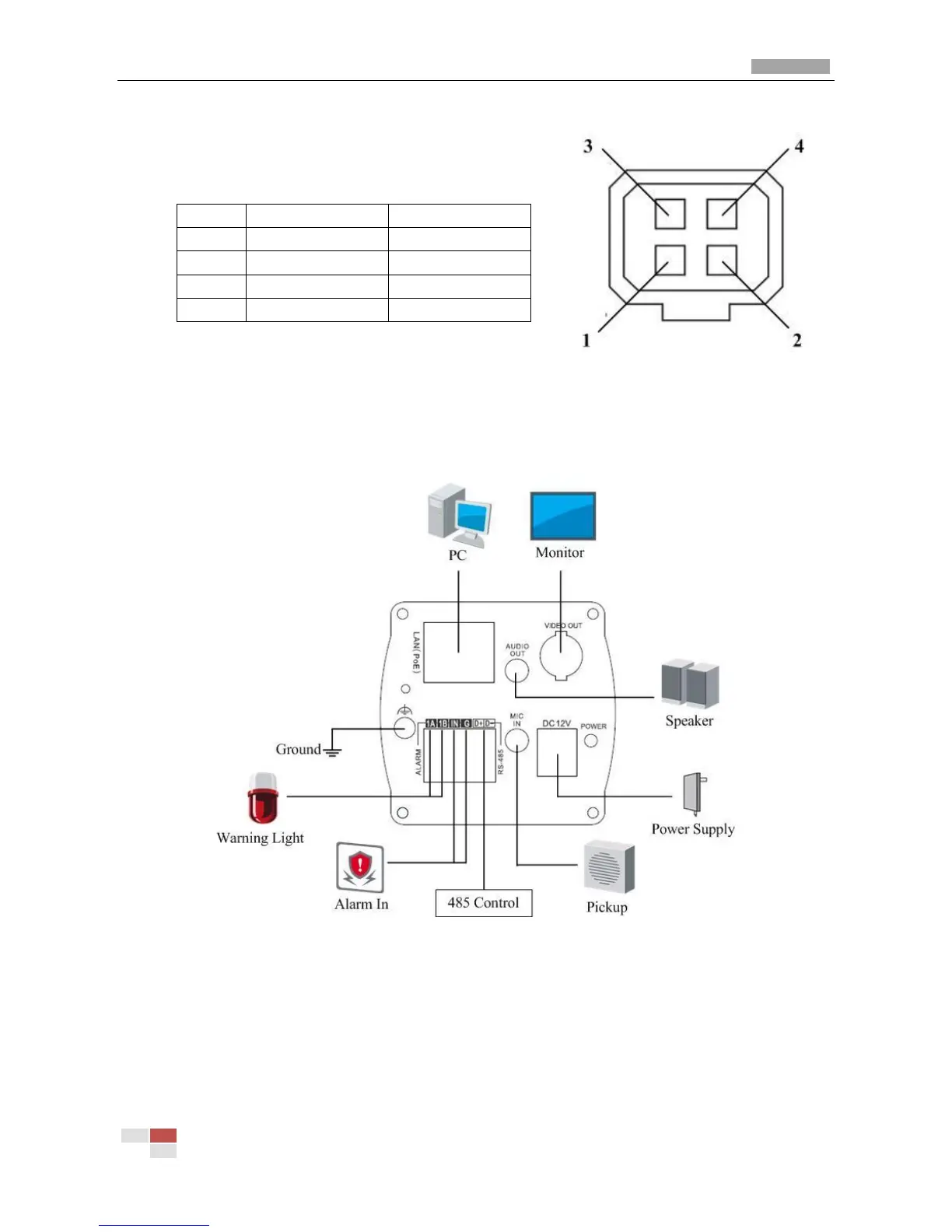

Camera connection:
Figure 2.1.6
Note:
The type of auto-iris interface is square four-hole type,
and the definition of each pin as shown:
Video
DC
1
Power
Damp-
2
NC
Damp+
3
Video
Drive+
4
GND
Drive-
Auto iris interface with video driving uses three pins:
Power, Video and GND; Auto iris interface with DC driving
uses four pins: Damp+, Damp-, Drive+ and Drive-.
