HIKVISION DS-2CD852MF-E

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
7
2.1.3 Box Camera Ⅲ

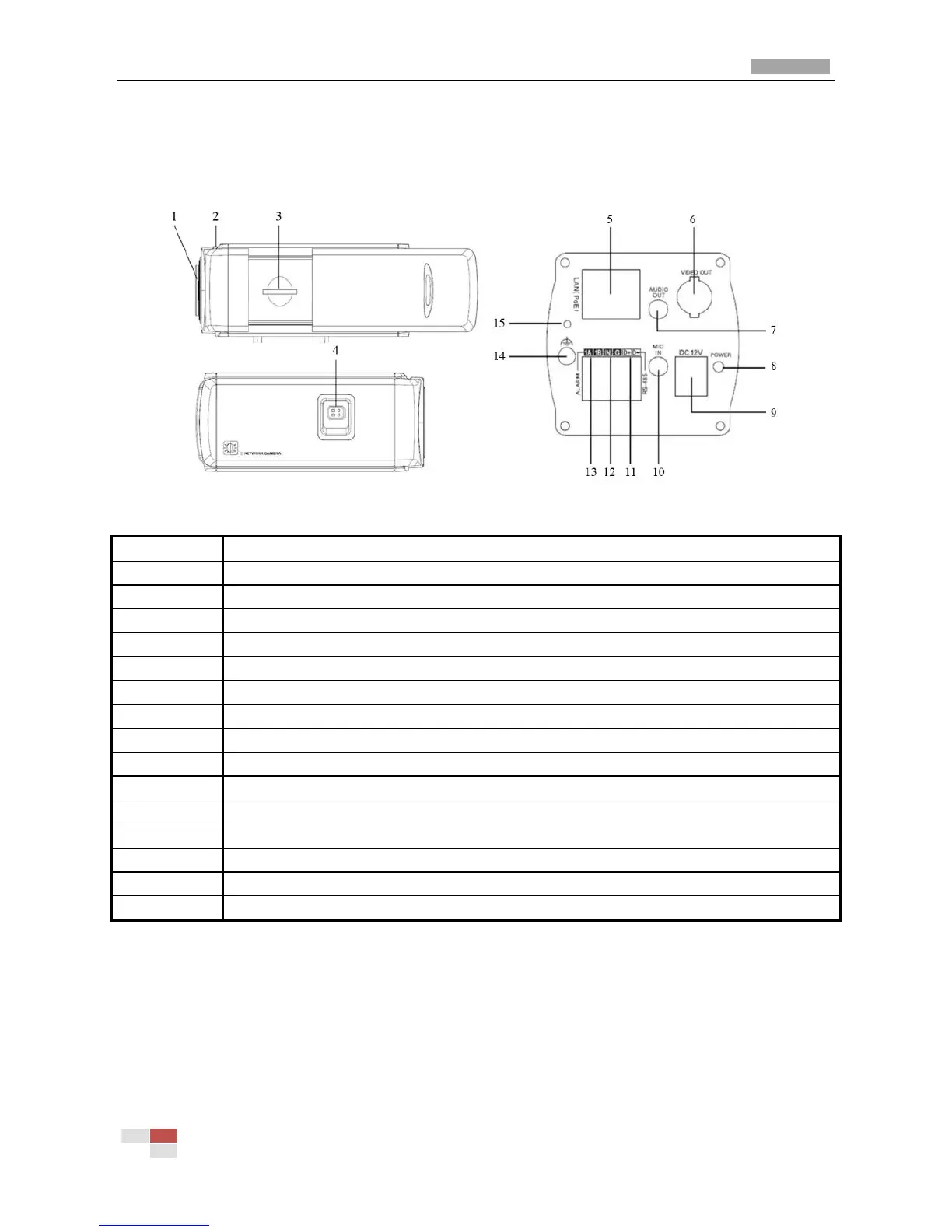

Camera description:
Figure 2.1.5
Serial NO.
Description
1
Lens mount
2
Back Focus Ring
3
SD: SD card slot
4
Auto iris interface
5
10M/100M self-adaptive Ethernet interface
6
VIDEO OUT: Video output interface
7
AUDIO OUT: Audio output interface
8
PWR: Power LED indicator
9
Power supply
10
MIC IN: Audio input interface
11
D+, D-: RS-485 interface
12
IN, G: Alarm input interface
13
1A, 1B: Alarm output interface
14
Ground
15
RESET: Reset the camera
Back Focus Adjustment:
When it still fails to realize precise focusing after having confirmed the correct lens interface, the
back focus adjustment may be required.
Operate the following steps:
Tighten the lens firstly and then loosen the fixed back focus ring; rotate the lens slowly until the
video image turns to be clear, and finally tighten and lock the back focus ring.
