HIKVISION DS-2CD852MF-E

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
11
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
AUDIO IN: Audio input interface
3
AUDIO OUT: Audio output interface
4
D+, D-: RS-485 interface
5
ALARM
IN, G: Alarm input interface
1A, 1B: Alarm output interface
6
Power supply

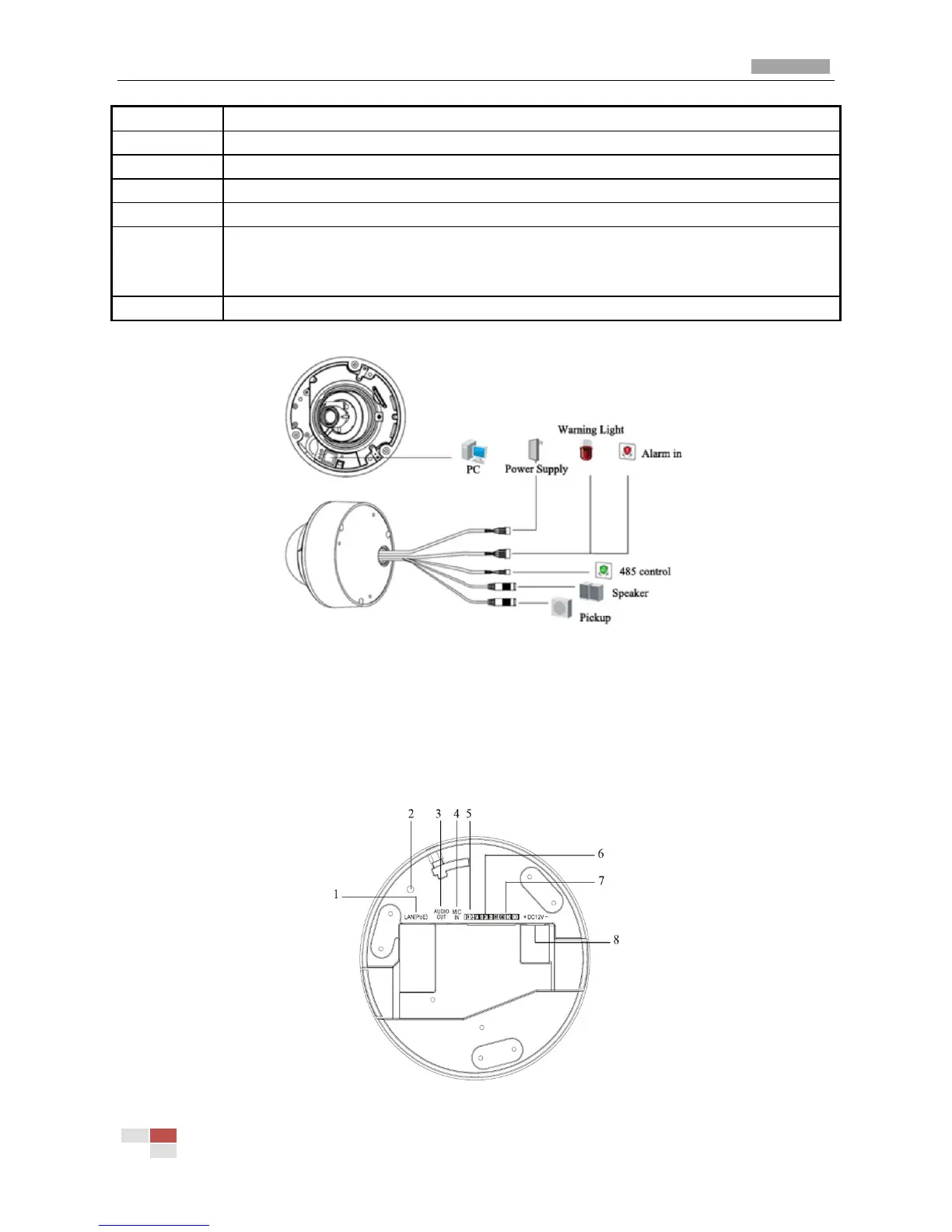

Camera connection:
Figure 2.2.4
2.2.3 Dome Camera Ⅲ
Camera description:
Figure 2.2.5
