HIKVISION DS-2CD852MF-E

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
9

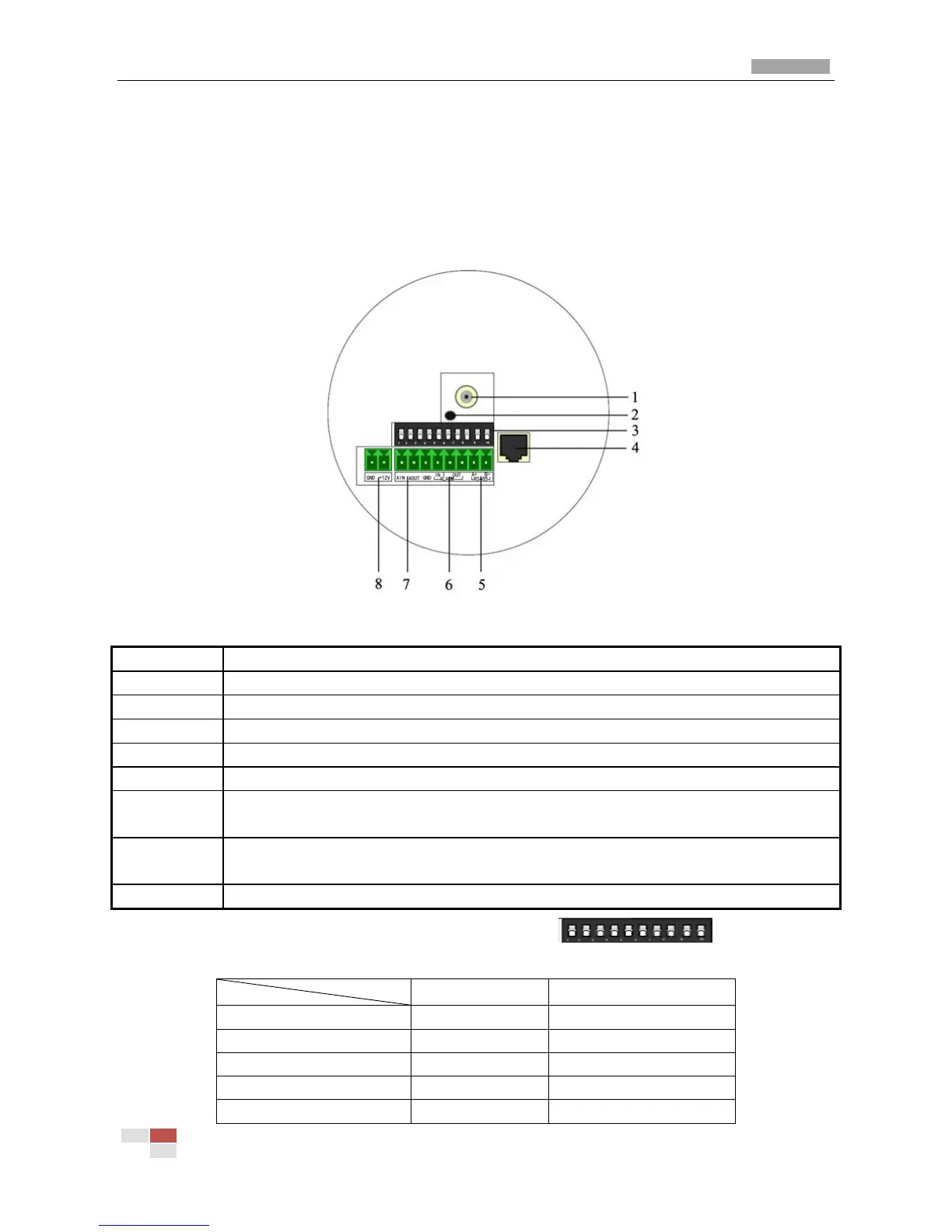

2.2 Dome Camera Physical Description
2.2.1 Dome Camera Ⅰ
Camera description:
Figure 2.2.1
Serial NO.
Description
1
Video output interface
2
PWR: Power LED indicator
3
Dial switch
4
10M/100M self-adaptive Ethernet interface
5
D+, D-: RS-485 interface
6
Alarm IN: Alarm input interface
Alarm OUT: Alarm output interface
7
AIN: Audio input interface
AOUT: Audio output interface
8
Power supply
Address& protocols dial switch. The defining for dial switch: , from 1 to 5 dial
switch functions are shown as following:
Switch Function
ON
OFF
1
SHARP
SOFT
2
AES
AI
3
BLC
OFF
4
FL
ON
5
NAGC
SAGC
