Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
3.5 Mini Dome Camera Installation
The ceiling mount is a suitable installation method for this camera. Please stick to the following
steps:

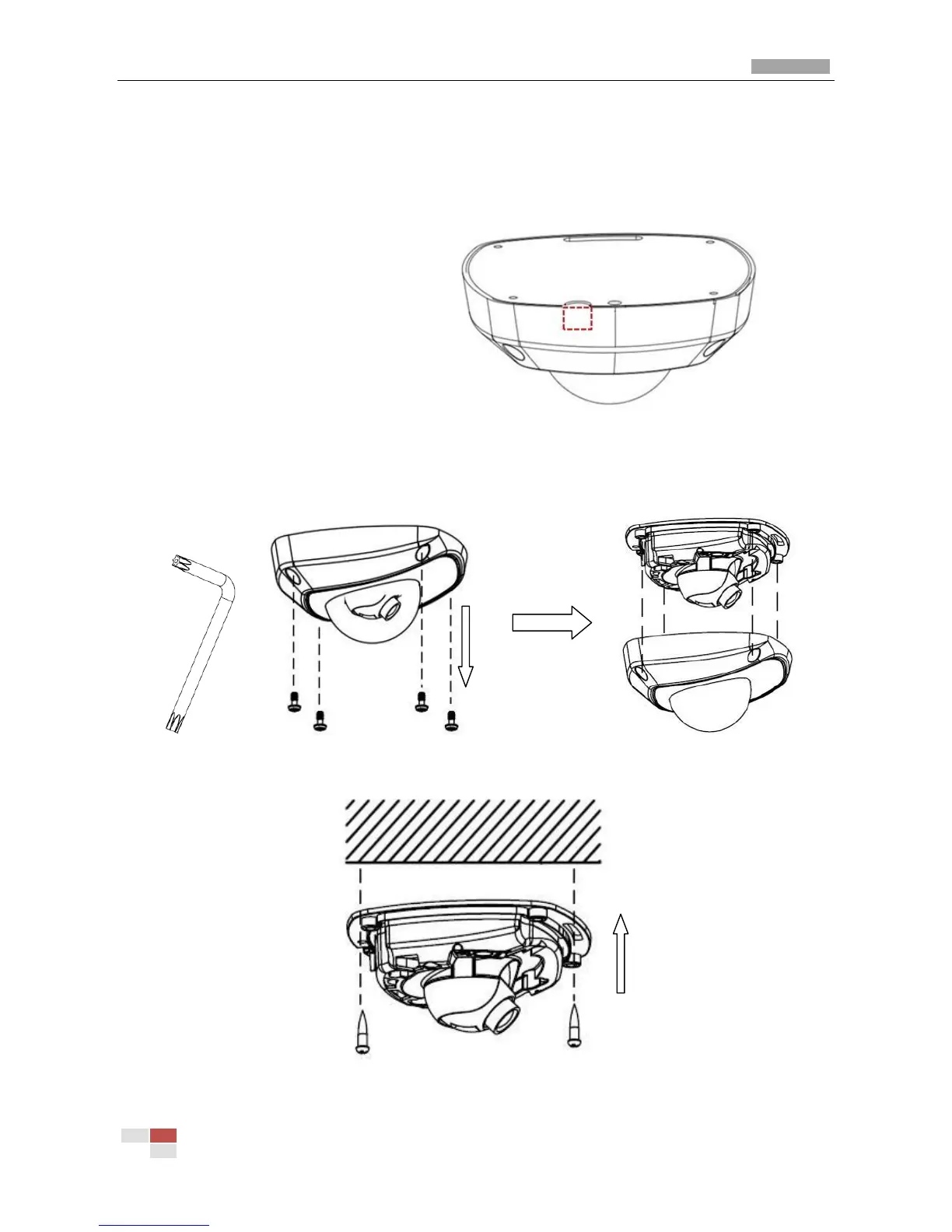

Figure 3.5.1
Step 1: Loosen the set screws with a hexagonal screw driver (attached with the camera), and
take down the back box shown as below:
Figure 3.5.2 Remove the back box
Step 2: Use the screws to fix the bottom board on the ceiling.
Figure 3.5.3 Fix the bottom board
Note:
If required, user can apply the pliers to
remove the clip (refer to the part marked
in dotted line) on the side of the back box
and then feed cables through the opening
to secure on the ceiling.
