HIKVISION DS-2CD852MF-E

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
14
Figure 2.4.1
Serial NO.
Description
1
Microphone hole
2
Micro SD card solt
3
LINK: Network status LED indicator.
When the network is connected, the LED flickers in green.
4
Power LED indicator, It turns solid red when power is applied to the unit
5
Lens
6
ETHERNET: 10M / 100M self-adaptive Ethernet interface
7
RESET: Reset all parameters to factory default settings
8
Speaker hole
9
Power supply
10
Bracket mounting holes, used to fix the camera to the bracket
Note:
When the camera is power up, press the ‘RESET’ button for about 10 seconds, then all parameters,
including user name, password, IP address, port number, etc., will be reset to the factory default
settings.

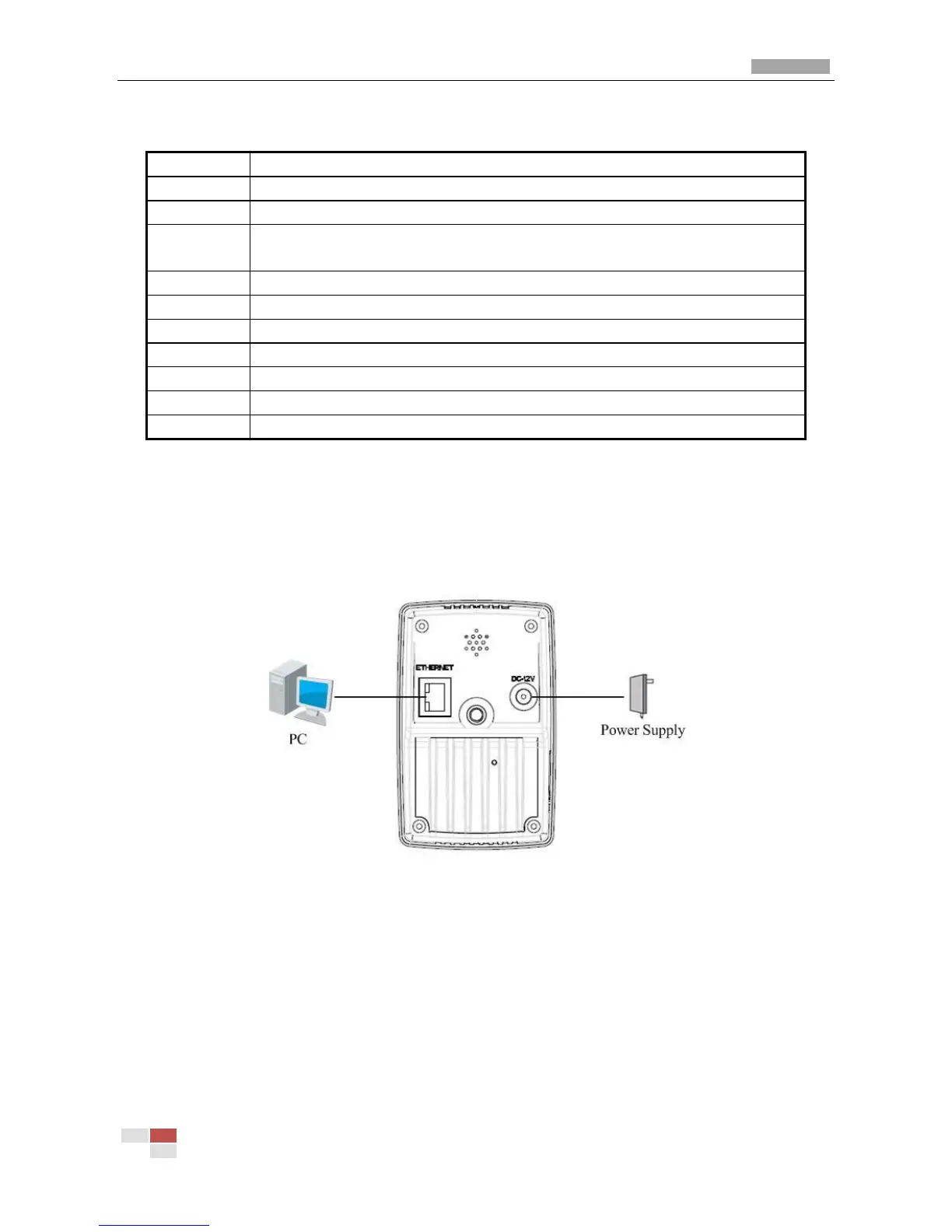

Camera connection:
Figure 2.4.2
