HIKVISION DS-2CD852MF-E - Page 27

Installation Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
22

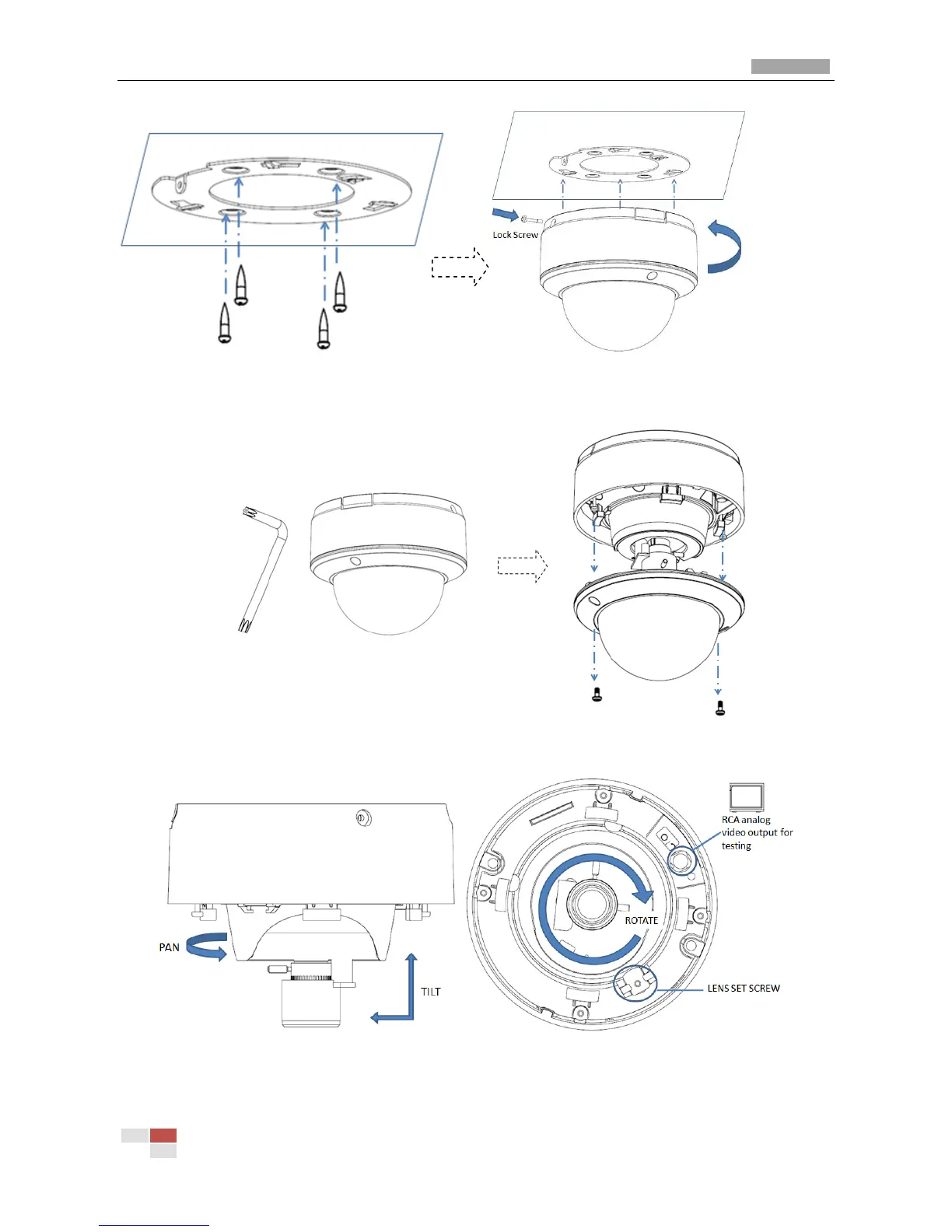

Figure 3.2.8
Step 2: Loosen the set screws with a hexagonal screw driver (attached with the camera), and take
down the dome cover.
Figure 3.2.9
Step 3: While viewing the video on the monitor, adjust the camera’s view angle for your need.
Figure 3.2.10
Step 4: Install the dome cover and tighten the screws.
