Type IV Camera
Cable
Hole
Screw
Hole

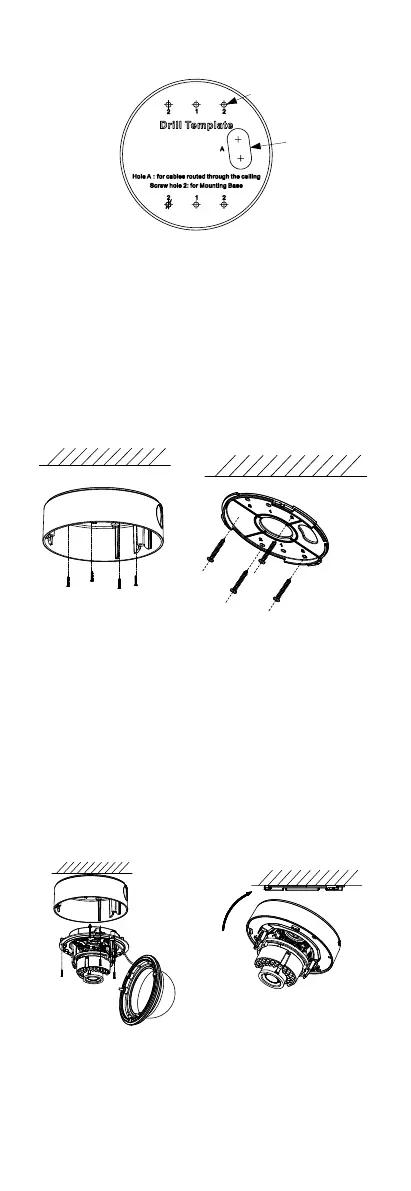

Figure 2. 9 The Drill Template
Note:
Cable hole is required when adopting ceiling outlet to
Route the cable.
3. Loosen the bubble of the dome camera to remove the
bubble and the black liner.
4. Attach the back box of type III camera/base plate of
type IV camera to the ceiling and secure them with
supplied screws.
Figure 2. 10 Attach the Back Box/Base Plate
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws are
required.
5. Route the cables through the cable hole (optional), or
the side opening.
6. Align the camera with the back box/base plate, and
secure the camera with the back box/base plate.
Figure 2. 11 Fix the Camera to the Ceiling
7. Connect the corresponding cables, such as power
cord, and video cable.
8. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
To Next Page
