HIKVISION DS-2CE17H0T-IT3F User Manual

UM DS-2CE17H0T-IT3F 052220NA 9

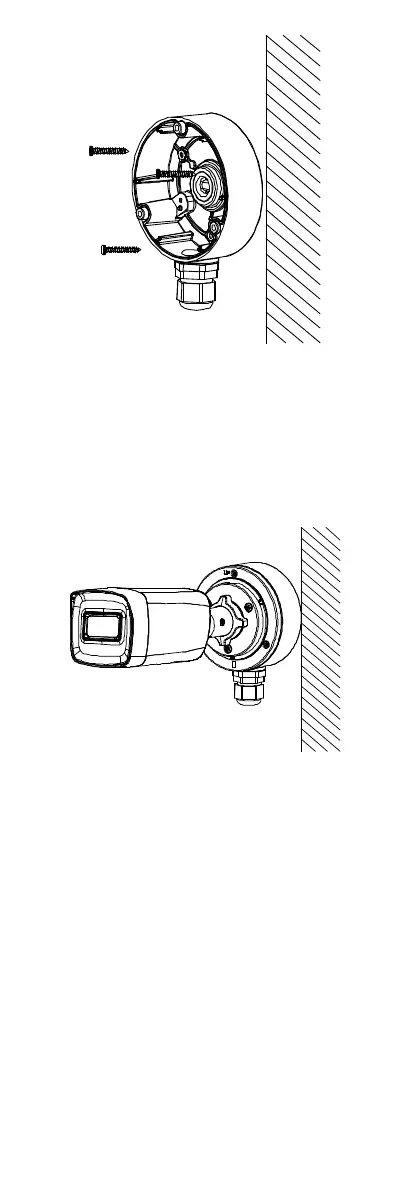

Figure 6, Secure Junction Box to the Wall
7. Route the cables through the bottom cable
hole or side cable hole of the junction box and
connect the cables.
8. Affix the junction box cover to its body with
three PM3 × 16 L6 screws that come with the
junction box.
Figure 7, Affix Junction Box Cover to its Body
9. Repeat steps 5 to 6 of 2.1 Ceiling/Wall
Mounting without Junction Box to finish the
installation.
3 Menu Description
Please follow the steps below to call the menu.
NOTE: The actual display may vary by camera
model.
1. Connect the camera to the TVI DVR and the
monitor as shown below.
