HIKVISION DS-2DB4236I-CWX - Wall Mounting with Bracket Type II

Explosion-proof IR Zoom Bullet Camera·Quick Start Guide
15
Safety Rope

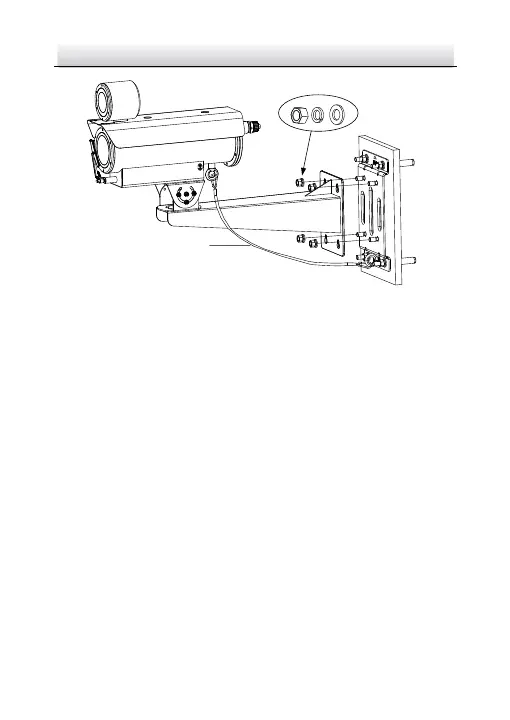

Figure 2-10 Fix the Wall Mounting Bracket to Mounting Base
2.3 Wall Mounting with Bracket Type II
Note:
The camera series shares similar mounting steps. We take type I
camera as example.
Steps:
1. Disassemble the PT joint.
2. Install the pedestal of the PT joint to the mounting base of the
camera with four M6 × 16 screws.
