HIKVISION DS-2DE3304W-DE User Manual

User Manual of Network Mini PTZ Camera
© Hikvision
73
turned on/off according to the illumination.
 Brightness Limit
The image brightness is adjusted automatically, you can specify the brightness limit
on your demand.
Backlight Settings
 BLC
If there’s a bright backlight, the subject in front of the backlight appears silhouetted
or dark. Enabling BLC(back light compensation) function can correct the exposure of
the subject. But the backlight environment is washed out to white.
 WDR (Wide Dynamic Range)
The wide dynamic range (WDR) function helps the camera provide clear images even
under back light circumstances. When there are both very bright and very dark areas
simultaneously in the field of view, WDR balances the brightness level of the whole
image and provide clear images with details.
You can enable or disable the WDR function as shown in Figure 7-32. The wide
dynamic level ranges from 0 to 100.

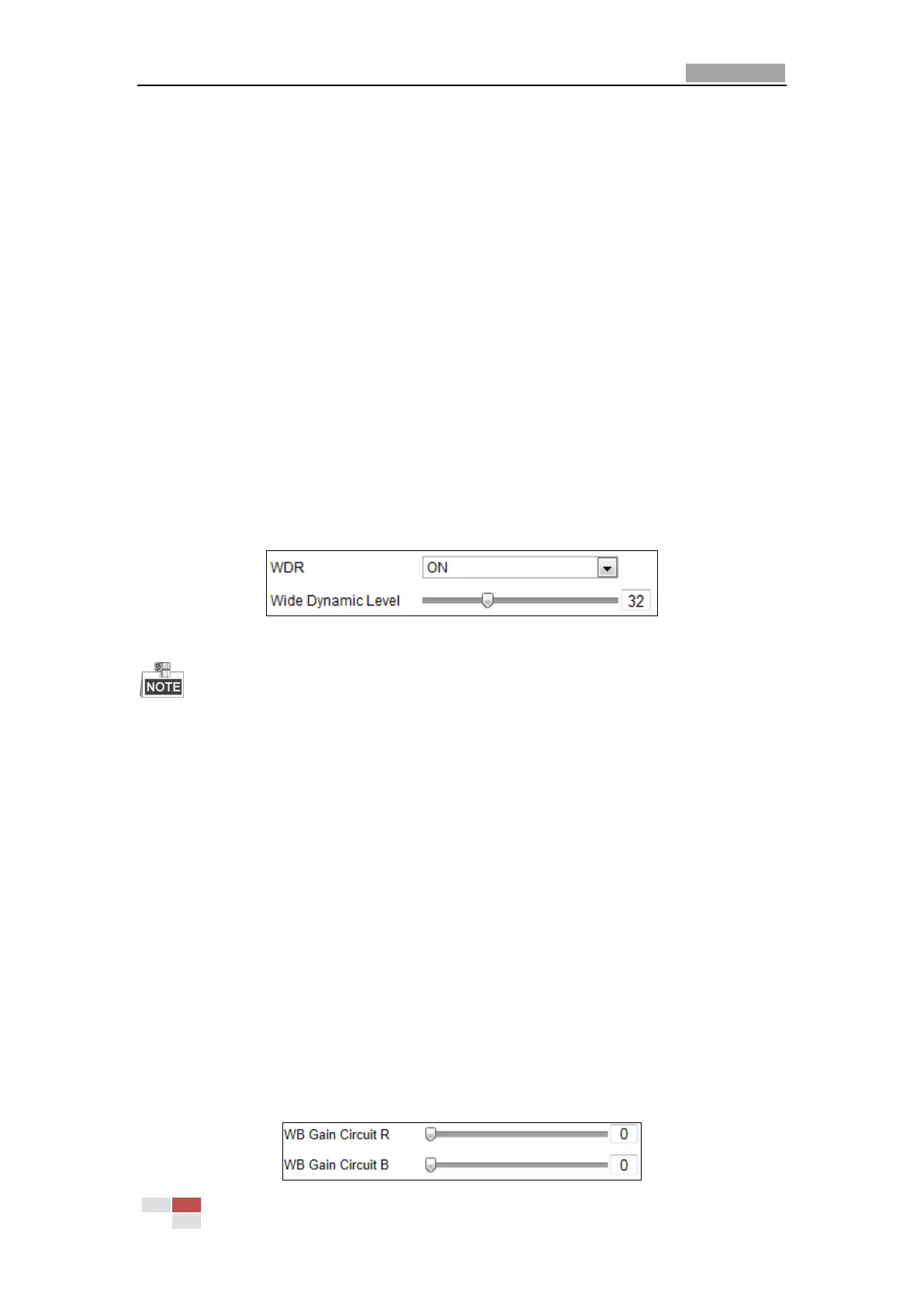

Figure 7-32 WDR
This function varies depending on the models of PTZ camera.
 HLC
HLC (High Light Compensation) makes the camera identify and suppress the strong
light sources that usually flare across a scene. This makes it possible to see the detail
of the image that would normally be hidden.
White Balance
The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent
Lamp, Sodium Lamp and Auto-Track.
 Auto:
In Auto mode, the camera retains color balance automatically according to the
current color temperature.
 MWB:
In MWB (Manual White Balance) mode, you can adjust the color temperature
manually to meet your own demand as shown in Figure 7-33.

HIKVISION DS-2DE3304W-DE Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Certification	FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/output	Yes
Number of languages	32
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	36 - 57 V
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	8 W
Number of cameras	1
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels	20 channels
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Pan range	0 - 350 °
Pan speed	60 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.01 lx
Signal-to-Noise Ratio (SNR)	52 dB
Digital zoom	16 x
Optical zoom	4 x
Focal length range	2.8 - 12 mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Sensor type	CMOS
Optical sensor size	1/2.8 \

Weight and Dimensions

Height	107.2 mm
Weight	950 g
Diameter	140.7 mm
