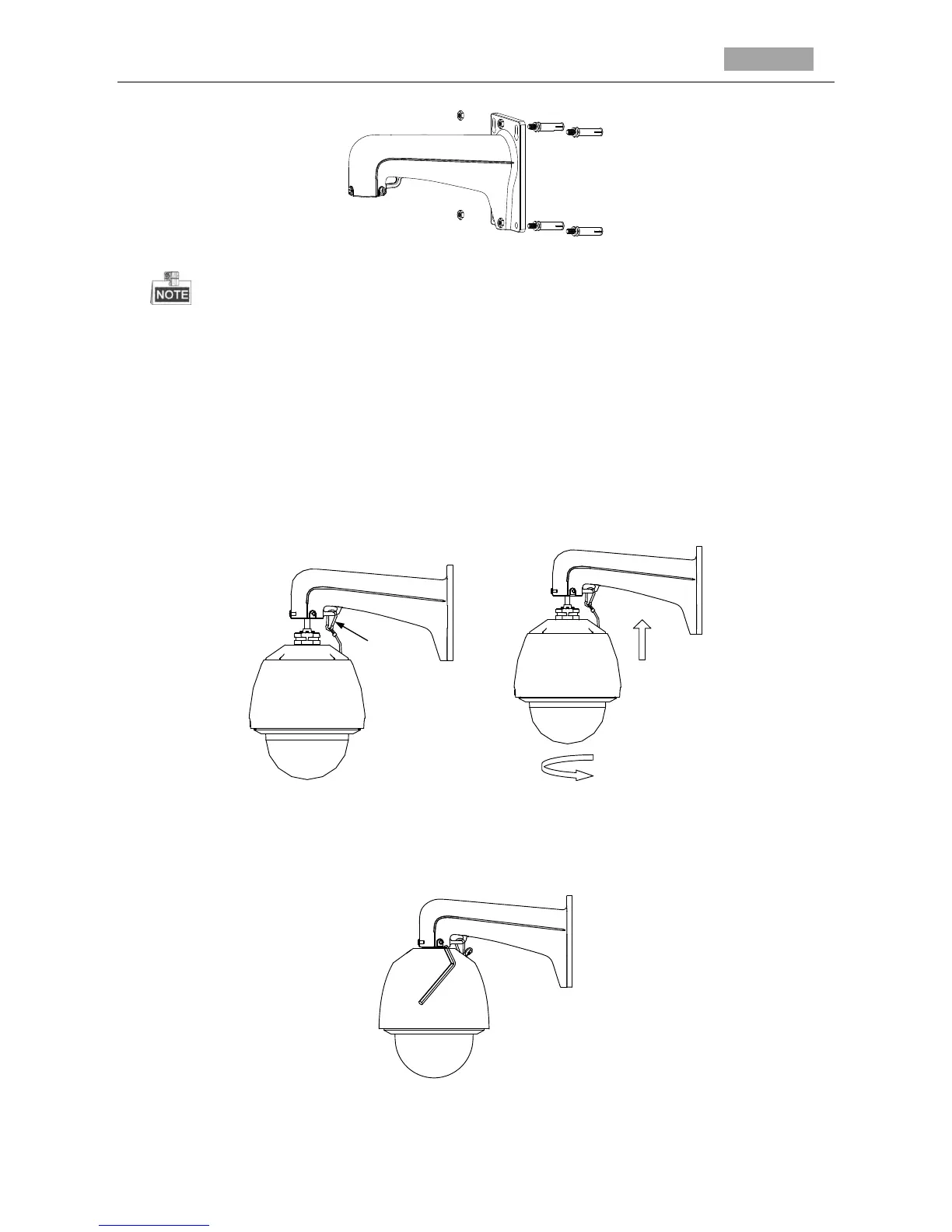

Figure 1-7 Install the Bracket
For cement wall, you need to use the expansion screw to fix the bracket. The mounting
hole of the expansion pipe on the wall should align with the mounting hole on the bracket.
For wooden wall, you can just use the self-tapping screw to fix the bracket.
Please make sure that the wall is strong enough to withstand at least 8 times the weight of
the dome and the bracket.
7. Install the speed dome to the bracket.
1) Hang the safety rope to the speed dome and the hook on the bracket as shown in Figure 1-8.
2) Route the cables of the speed dome through the bracket.
3) Connect the corresponding cables. For the detailed information, please refer to section 1.1.3
Connecting the Cables.
Figure 1-8 Install the Speed Dome
4) Loosen the two lock screws on the bracket.
5) Install the speed dome to the bracket. Rotate the speed dome clockwise tightly.
6) Secure the two lock screws with the Allen wrench as shown in Figure 1-9.
Figure 1-9 Secure the Speed Dome
