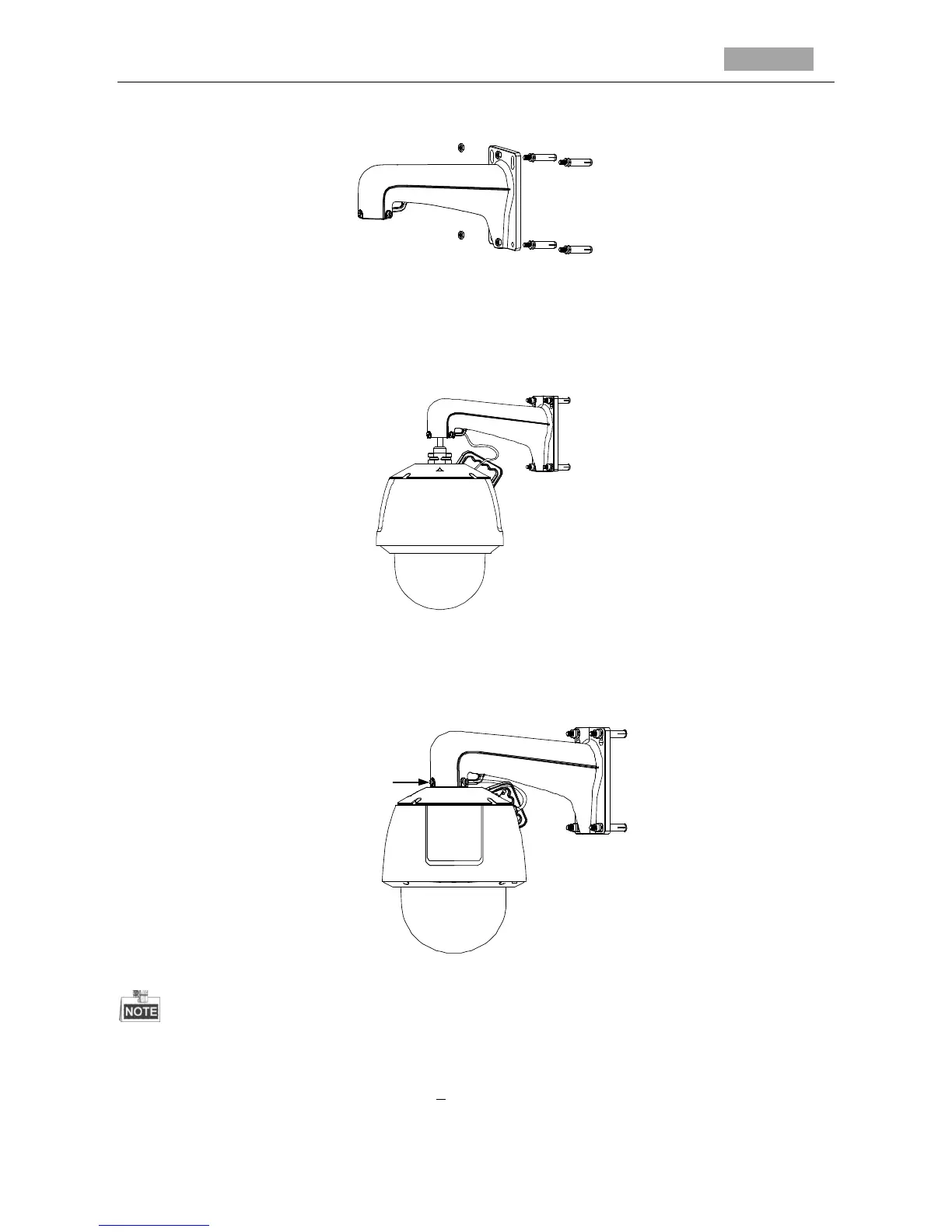

7. Secure the bracket with 4 hex nuts and washers
Figure 1-14 Secure the Bracket
8. Install the speed dome to the bracket.
1) Hook the back box of the speed dome to the bracket with the safety rope. Route the
cables through the bracket.
2) Connect the corresponding cables.
Figure 1-15 Hang the Safety Rope
3) Loosen the two lock screws on the bracket.
4) Install the speed dome to the bracket. Rotate the speed dome clockwise tightly.
5) Secure the two lock screws with the Allen wrench.
Figure 1-16 Mount the Dome
The bracket in Figure 1-14 is the recommended bracket for this series of speed dome, and a
pendent adapter is required if any other bracket is selected.
The dimension of pendant adapter is G1
1
2
.
