Thermal Network Positioning System·Quick Start Guide
10

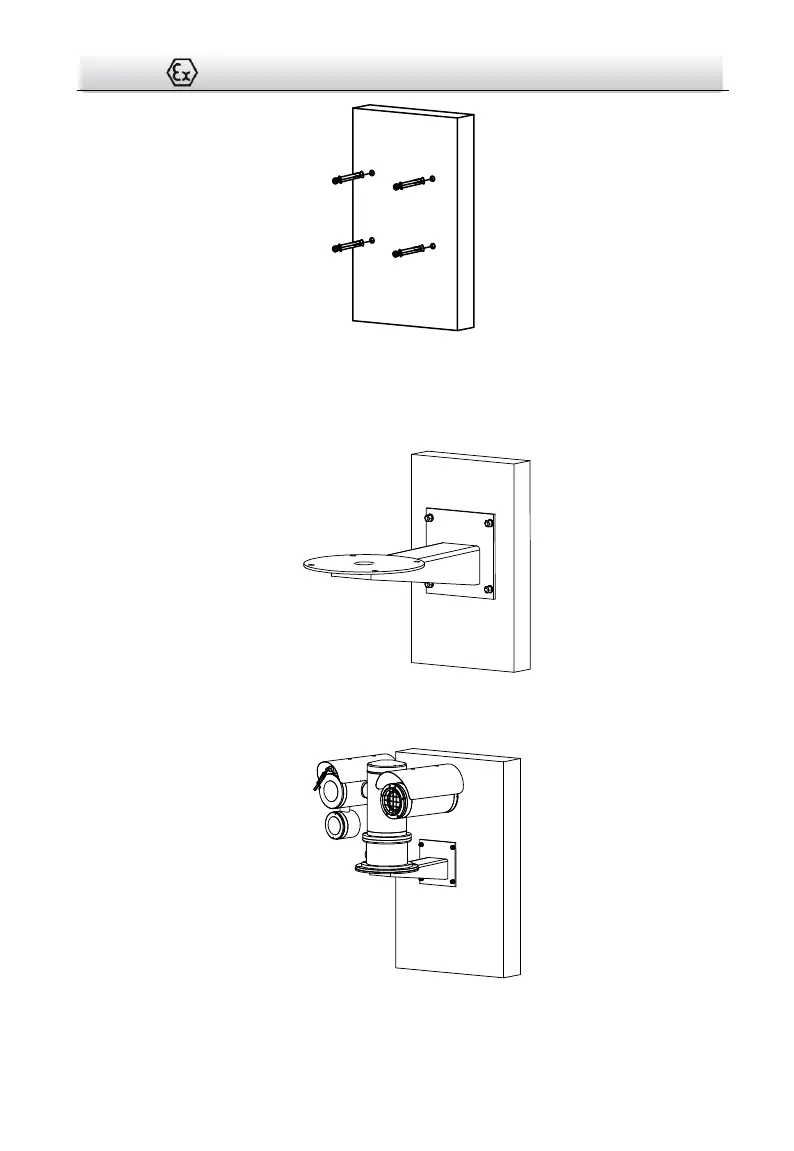

Figure 1-3 Drill Expansion Screws
4. Align the holes on the bracket with the position of expansion screws, Install the
bracket plate onto the wall, and tighten the expansion screws.
Figure 1-4 Install Bracket Plate
5. Align the holes on the camera with the holes of bracket, fix the camera with M10
screws.
Figure 1-5 Install Camera
