HIKVISION DS-3E03 P Series User Manual

Installation Manual of DS-3E2300P Series Ethernet Switch
[选取日期]
- 1 -
Chapter 1 Overview
The document describes the characteristics and parameters of DS-3E2300P and gives an overview
of DS-3E2300P.
1.1 Standard Configuration
DS-3E2310P switch has three parts: 8 IEEE802.3af/at 100M Ethernet Base-T ports, 2 gigabit Base-T
ports, 2 combo optical ports and 1 console port, DS-3E2318P switch has three parts: 16
IEEE802.3af/at 100M Ethernet Base-T ports, 2 gigabit Base-T ports, 2 combo optical ports and 1
console port, DS-3E2326P switch has three parts: 24 IEEE802.3af/at 100M Ethernet Base-T ports, 2
gigabit Base-T ports, 2 combo optical ports and 1 console port. See the following table:
Table 1-1 Attributes of necessary ports
Port
Features
Gigabit Ethernet ports
Base-T port: a rate of 10/100/1000M auto-adaptation,
cable MDI/MDIX auto-identification, UTP(RJ45) port,
with LINK/ACT indicators
100M PoE port
Base-T port: a rate of 10/100M auto-adaptation,
MDI/MDIX auto-identification, UTP(RJ45) interface
Console port
A rate of 9600bps, RJ45 interface
1.2 Panel and Interfaces
1.2.1 Front Panel

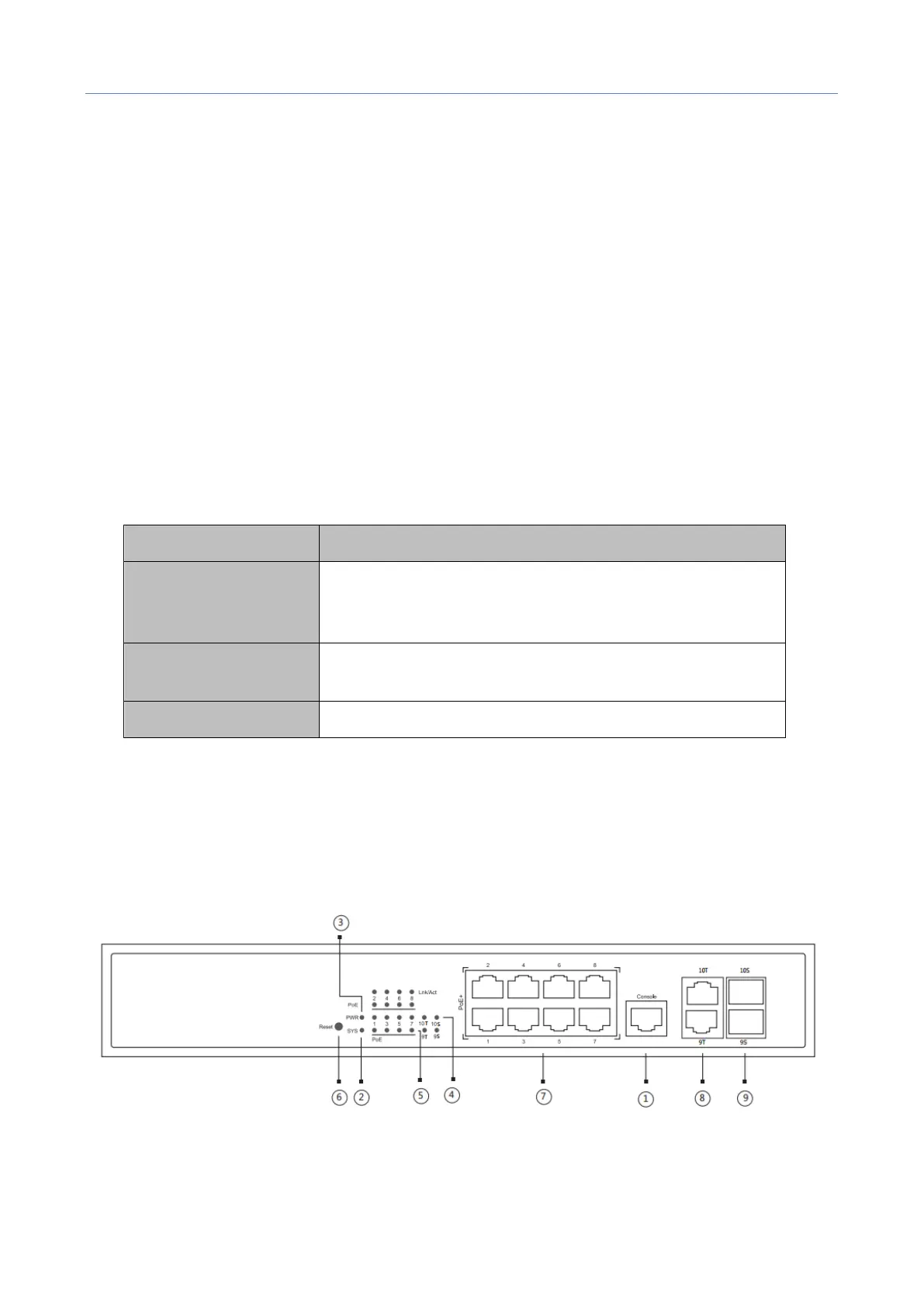

Figure 1-1 Front Panel of the DS-3E2310P Switch

HIKVISION DS-3E03 P Series Specifications

General

Brand	HIKVISION
Model	DS-3E03 P Series
Category	Switch
Language	English
