Installation Manual of DS-3E2300P Series Ethernet Switch
[选取日期]
- 10 -

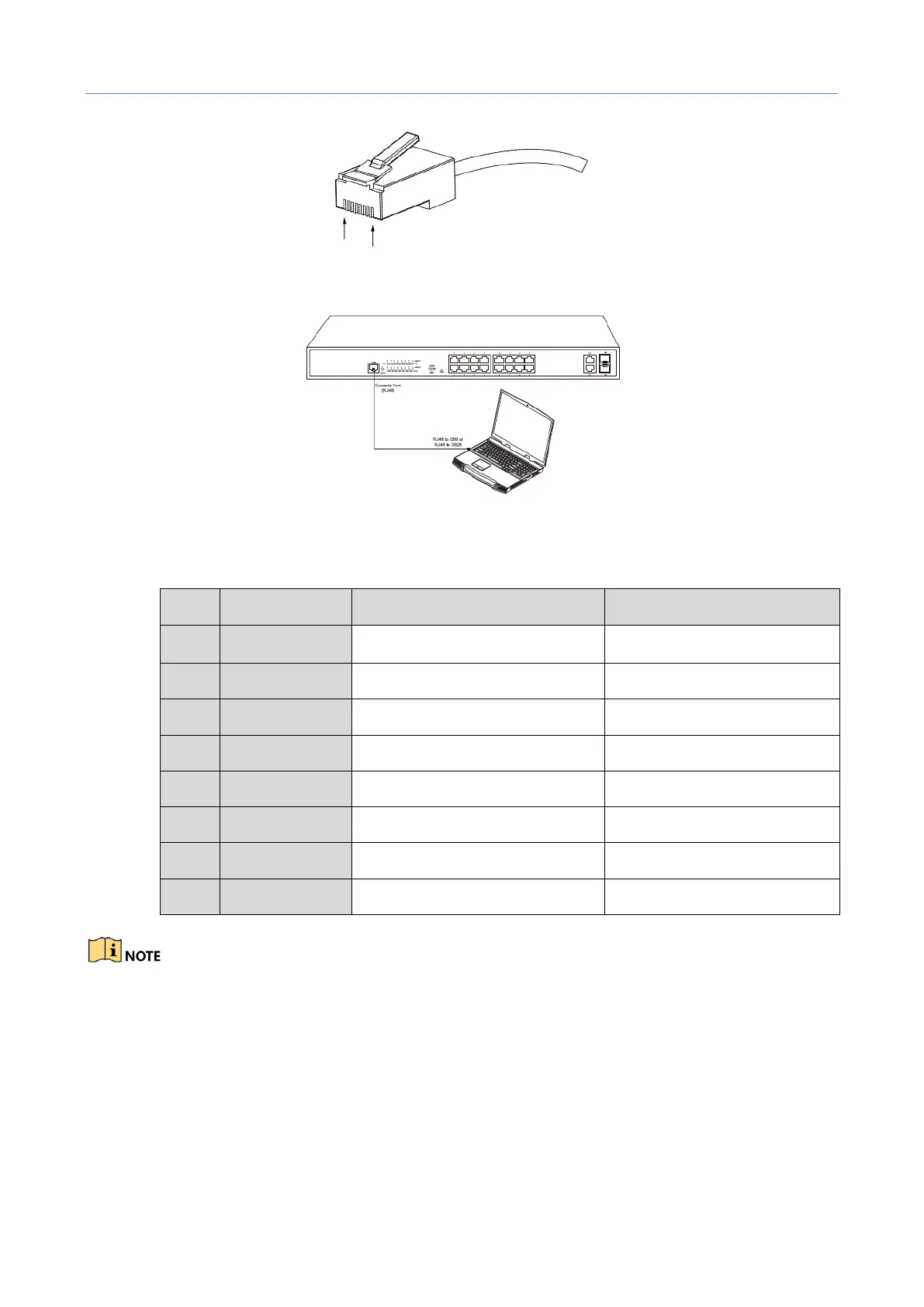

Figure 3-3 RJ-45 connector of the console port
Figure 3-4 Connecting the console port of DS-3E2300P and computer
Table 3-1 Definition of the pins of the console port
No.
Abbreviation
Name
Description
1
CD
Carrier Detecting
No connect
2
RXD
Data receiving
Input
3
DSR
Data-line device ready
No connect
4
TXD
Data transmitting
Output
5
RTS
Transmission requesting
No connect
6
CTS
Response transmitting
No connect
7
DTR
Data terminal ready
No connect
8
SG
Signal ground
GND
Because the console port of DS-3E2300P bears no flow control, you need to set Data flow control
to none when using a superior terminal to manage DS-3E2300P configurations, or the single-pass
problem will arise from the superior terminal.
The cable is used to connect the console port of the DS-3E2300P switch and the outside console
terminal device. One end of the cable is a 8-pin RJ45 plug and the other end is a 25-hole plug
(DB25) and a 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on the
DS-3E2300P switch. DB25 or DB9 is applied according to the requirement of the terminal serial
port. The inner line connection in the cable is shown in Figure 3-5.
