Installation Manual of DS-3E2300P Series Ethernet Switch
[选取日期]
- 9 -
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
3.2.2 Installing the Chassis on the Cabinet
The chassis of the switch is fixed to the cabinet through the fixing mouth. When operation it is
enough to fix the back template of the switch through the fixing mouth to the cabinet.

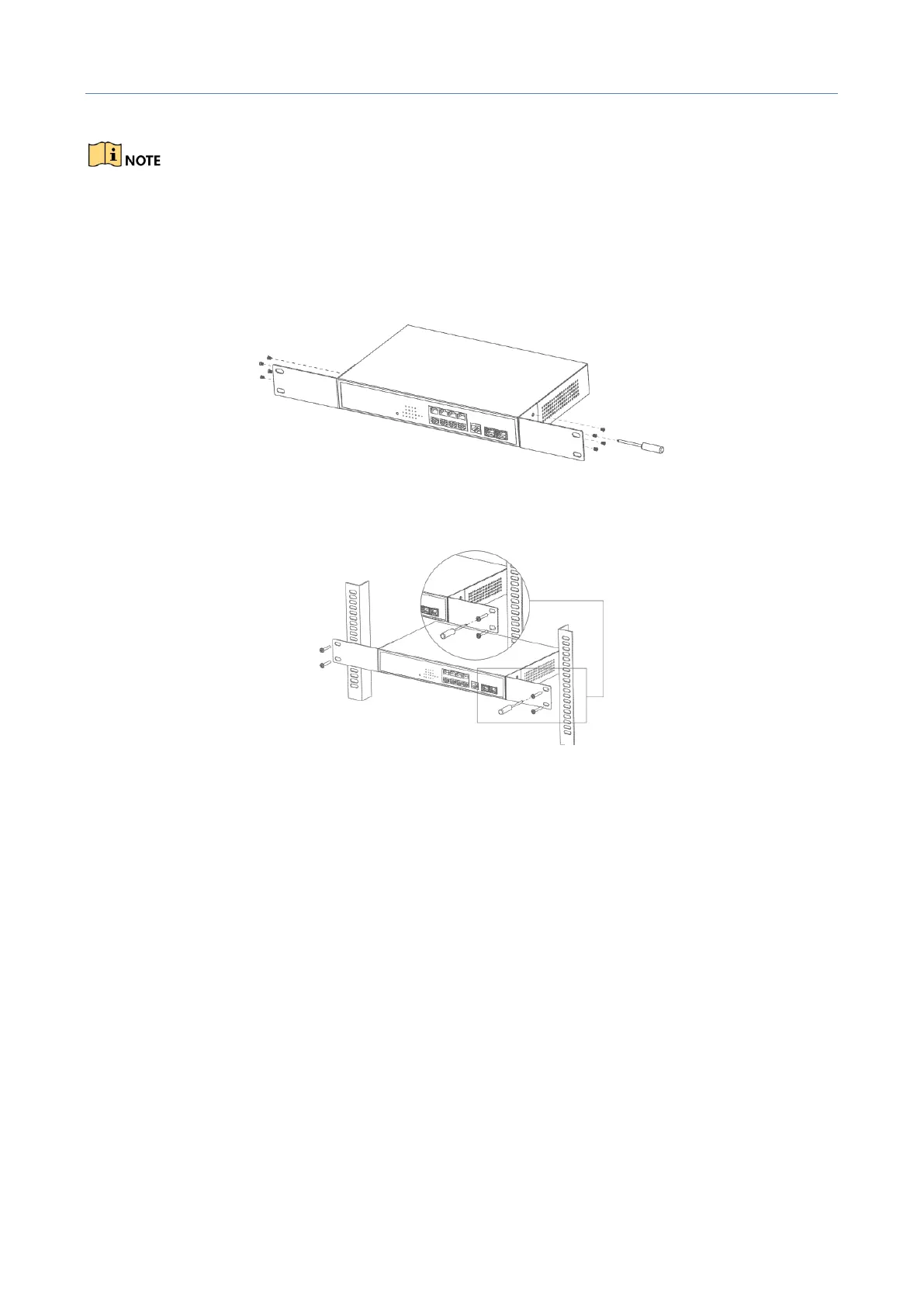

Figure 3-1 Fixing the machine box of the switch
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of DS-3E2300P has a Console port. The rate of the console port is a value of
1200bps-115200bps. It has a standard RJ45 plug. After you connect the console port to the serial
port of PC through a console cable, you can configure and monitor the switch of DS-3E2300P by
running a terminal emulation software, such as super Windows terminal. The cable is provided
according to the host. The communication parameters of the terminal serial port can be set to a
rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control.
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug corresponds
to the RJ45 socket, whose pins can be aligned from left to right with the value from 1 to 8.
