Installation Manual of DS-3E2300P Series Ethernet Switch
[选取日期]
- 12 -

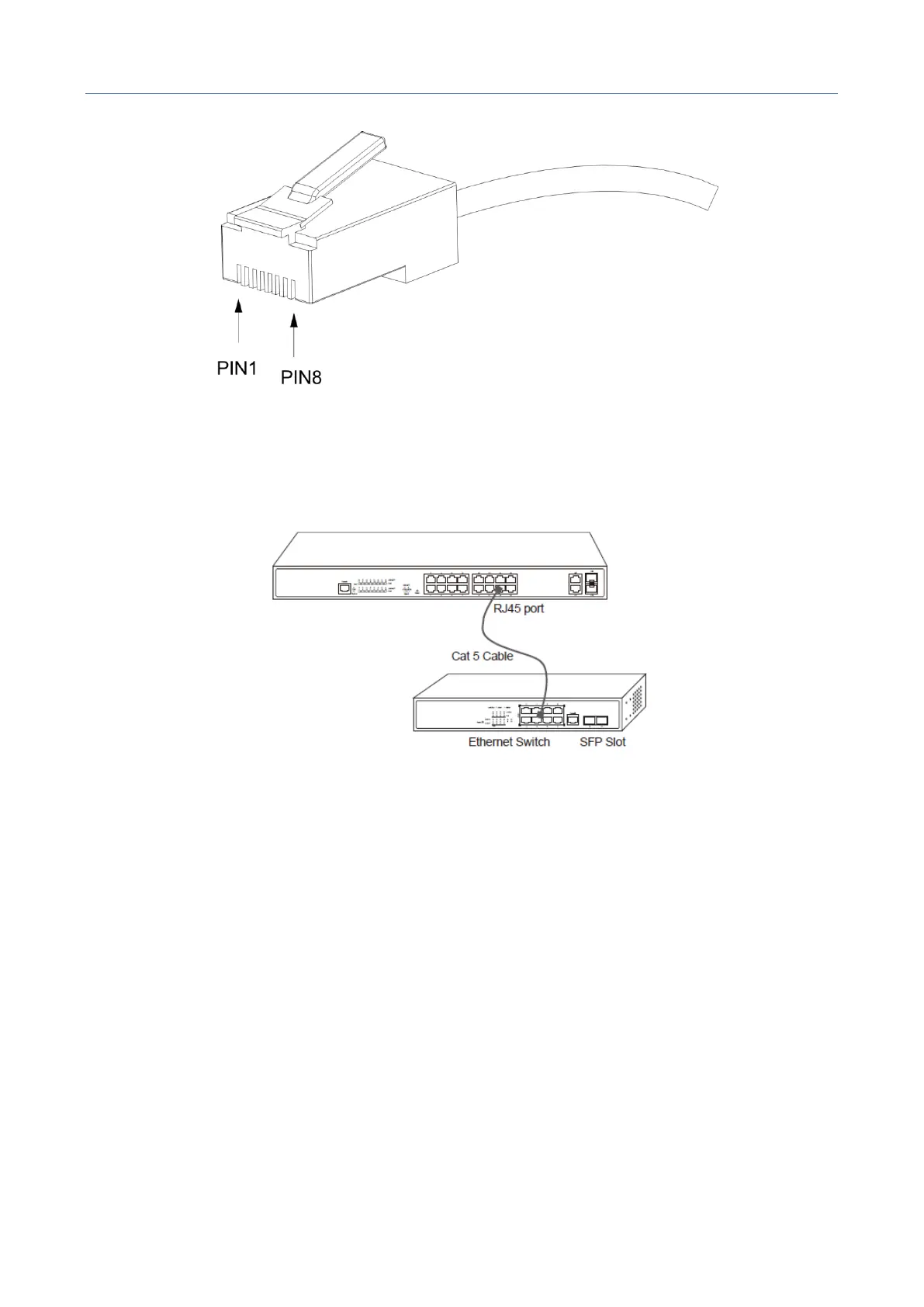

Figure 3-7 RJ-45 connector of the console port
As 16 10/100Base-TX ports of DS-3E2300P support the MDI/MDIX auto-identification of the cable,
DS-3E2300P can adopt five classes of direct-through/cross network cables when it connects other
Ethernet terminals.
Figure 3-8 Connecting Base-T ports and other Ethernet terminal
