HIKVISION DS-7032NI-Q4 Quick Start Guide

Network Video Recorder Quick Start Guide
10

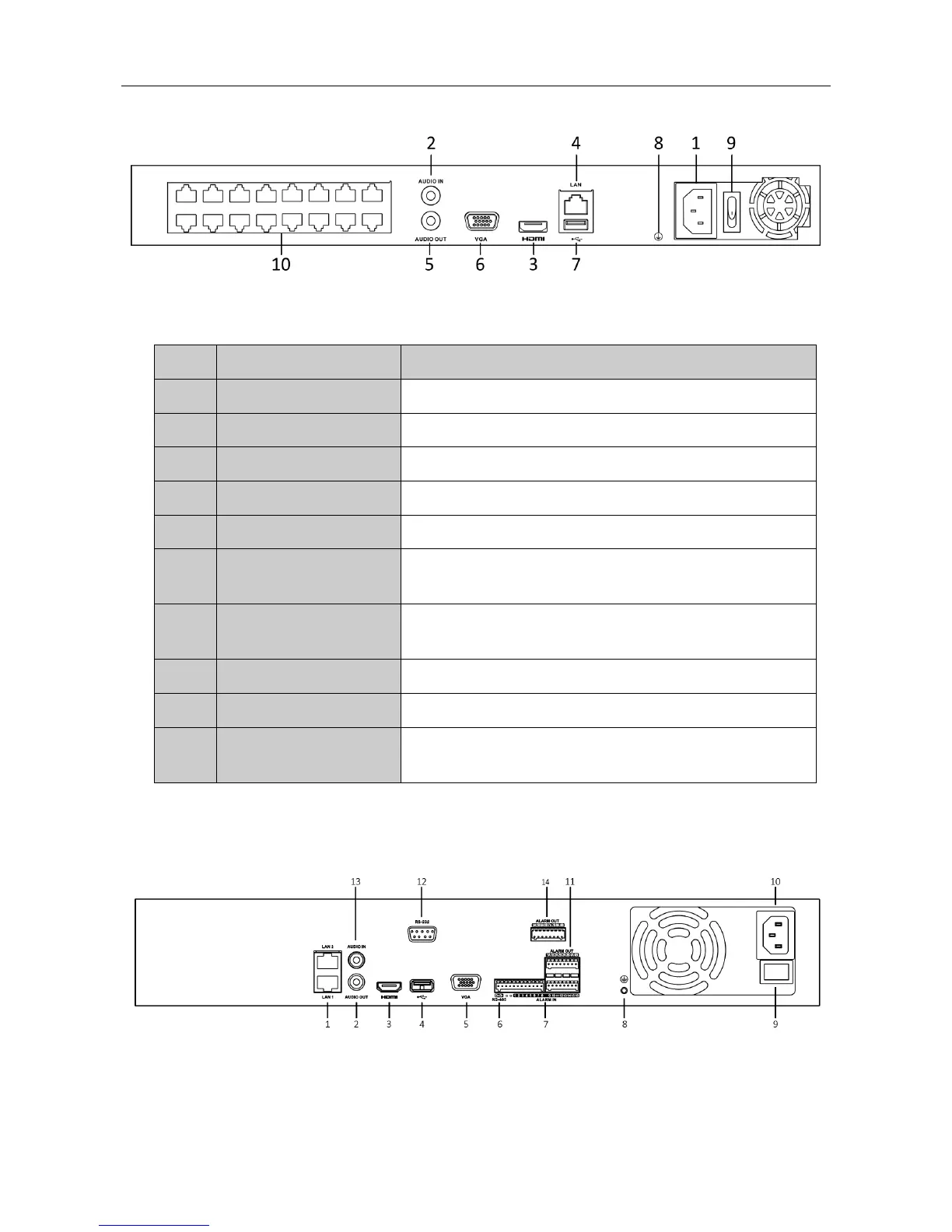

Figure 1-6 DS-7600NI-Q2/16P Series
Table 1-5 Panel Description
DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series
Figure 1-7 DS-7700NI-Q4 Series
No.
Item
Description
1
Power Supply
100~240 VAC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1, 10 /100 /1000 Mbps self-adaptive Ethernet interface
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
