User Manual of DS-7100HWI/HVI-SL Series DVR
10
1.1 Front Panel

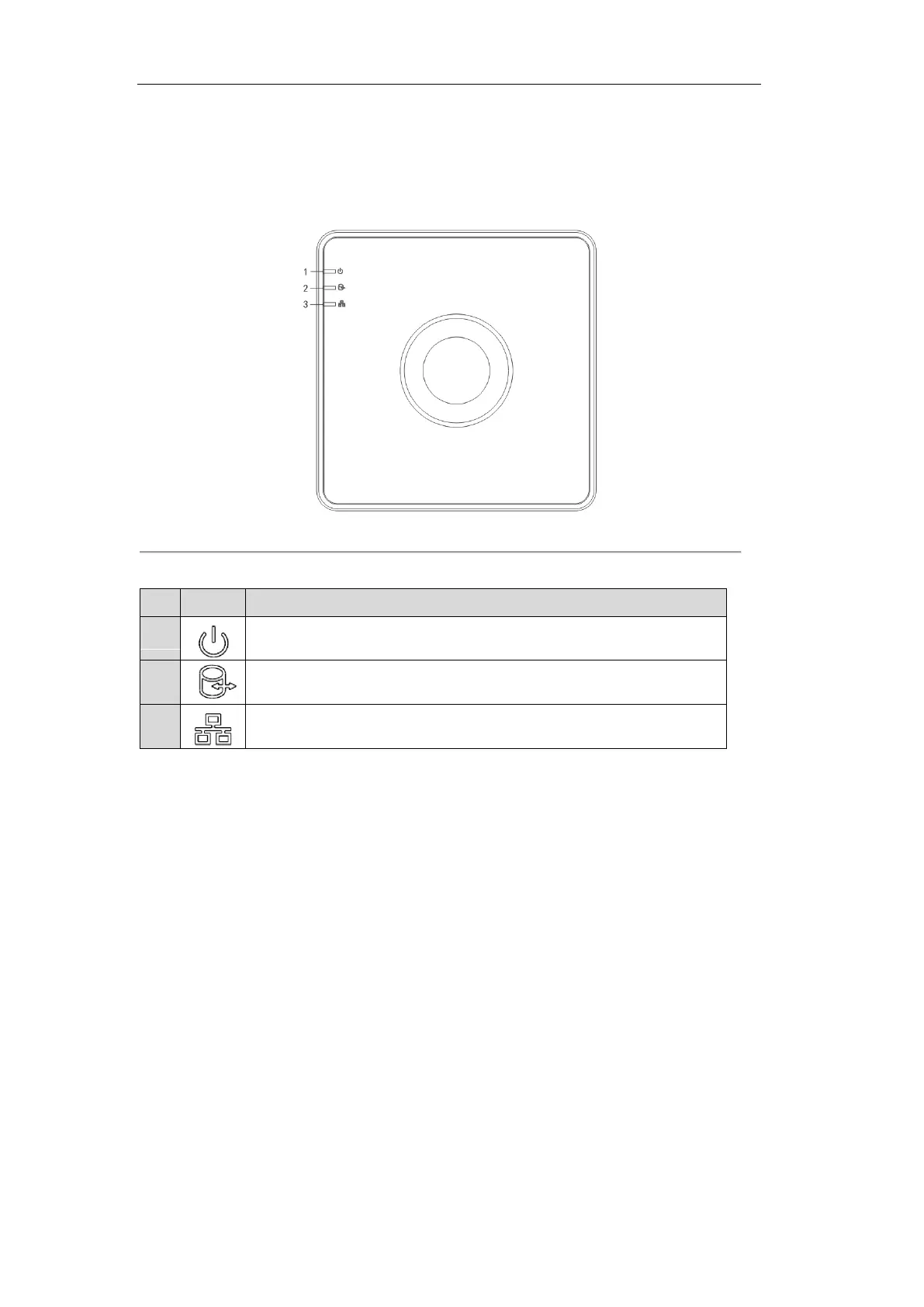

The front panel of DS-7100HWI/HVI-SL series DVR is shown in Figure 1.1:
Figure 1.1 Front Panel
Table 1.1 Description of Indicators
No.
Icon
Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or written to HDD.
3
Indicator blinks blue when network connection is functioning properly.
