User Manual of DS-7100HWI/HVI-SL Series DVR
133
12.3 Configuring More Settings
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Click the More Settings tab to enter the More Settings interface.

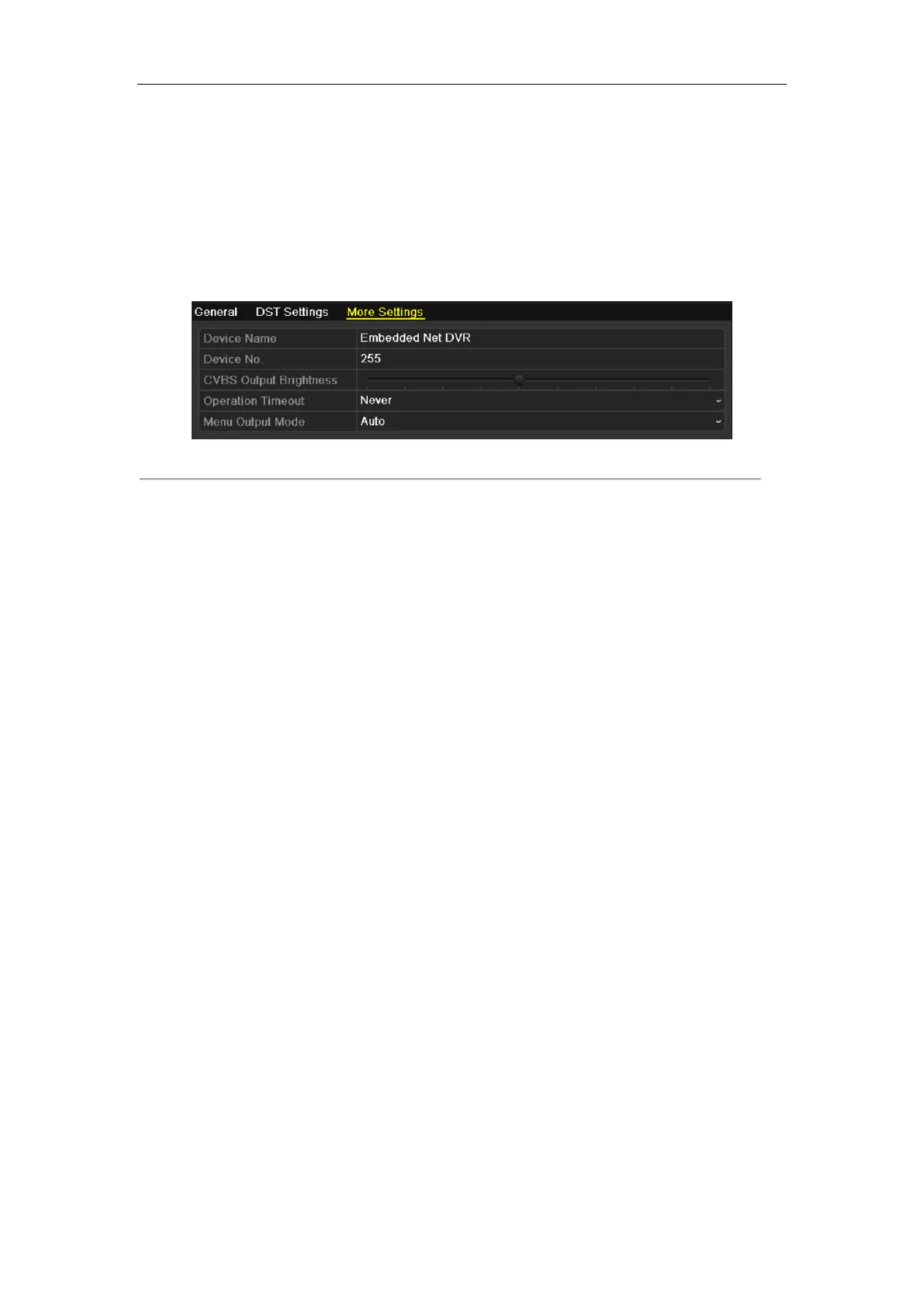

Figure 12.3 More Settings Interface
3. Configure the following settings:
• Device Name: Edit the name of device.
• Device No.: Edit the serial number of device. The Device No. can be set in the range of 1~255, and
the default No. is 255.
• CVBS Output Brightness: Adjust the video output brightness.
• Operation Timeout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, the system will exit from the current operation menu to live view screen after 5 minutes
of menu inactivity.
• Menu Output Mode: Select the menu output mode to Auto, VGA or Main CVBS.
Notes:
1. When you select Auto, the device can automatically detect the VGA output as the main output
and the CVBS output as the auxiliary output when it starts up.
2. After you have changed the output mode, you should restart the device to activate the new
settings.
4. Click the Apply button to save the settings.
