User Manual of DS-7100HWI/HVI-SL Series DVR
117
10.2 Configuring Privacy Mask
Purpose:
You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator.
Steps:
1. Enter the Privacy Mask Settings interface.
Menu > Camera > Privacy Mask
2. Select the camera to set privacy mask.
3. Click the checkbox of Enable Privacy Mask to enable this feature.

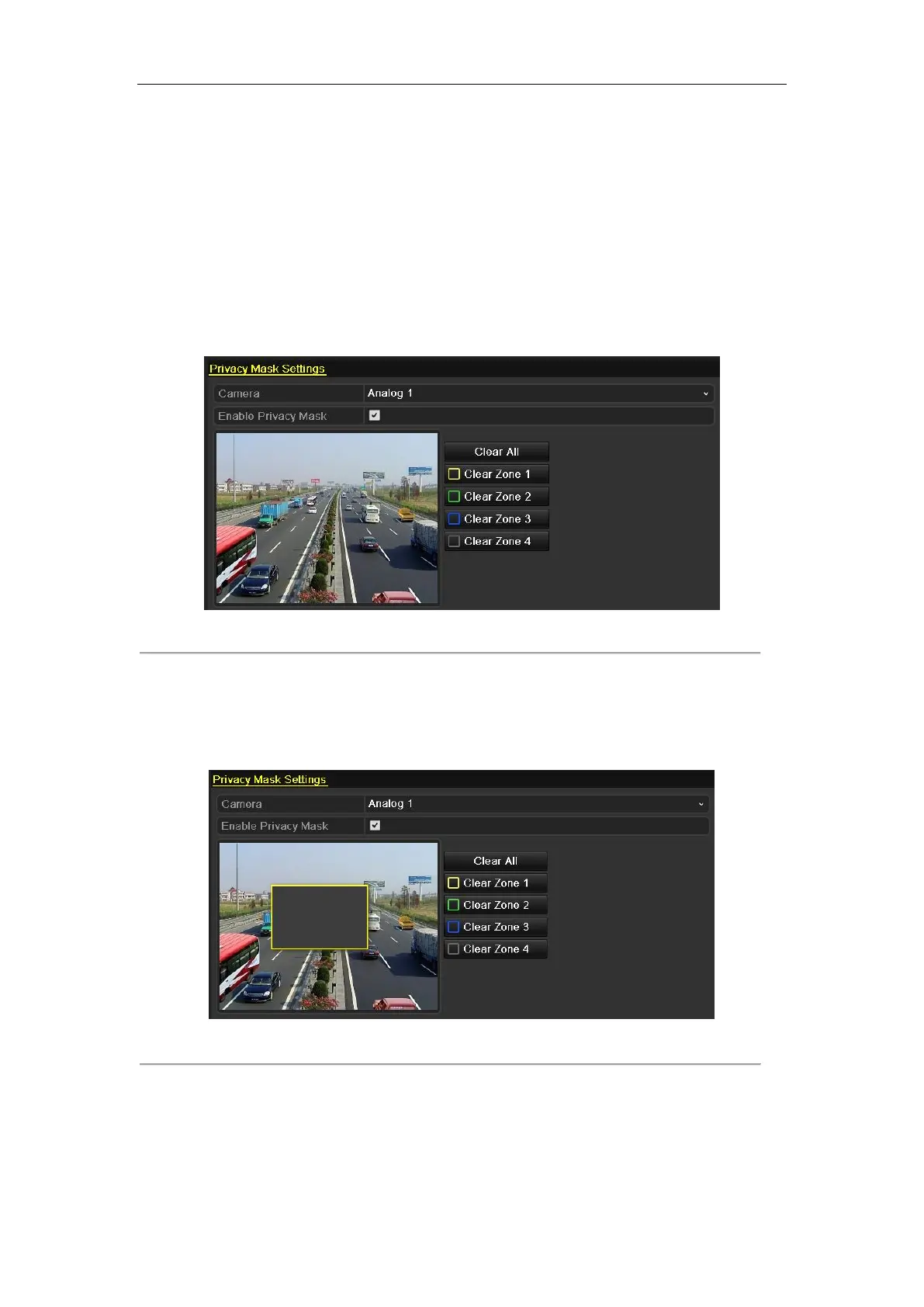

Figure 10.3 Privacy Mask Settings Interface
4. Use the mouse to draw a zone on the window. The zones will be marked with different frame colors.
Note: Up to 4 privacy mask zones can be configured, and the size of each area can be adjusted.
5. The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear
Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.
Figure 10.4 Set Privacy Mask Area
6. You can click the Copy button to copy the privacy mask settings of the current camera to other cameras.
Please refer to step 7 of Chapter 10.1 Configuring OSD Settings.
7. Click the Apply button to save the settings.
Note: You can also click the Restore to restore the current OSD settings to the default parameters.
