User Manual of DS-7100HWI/HVI-SL Series DVR
36

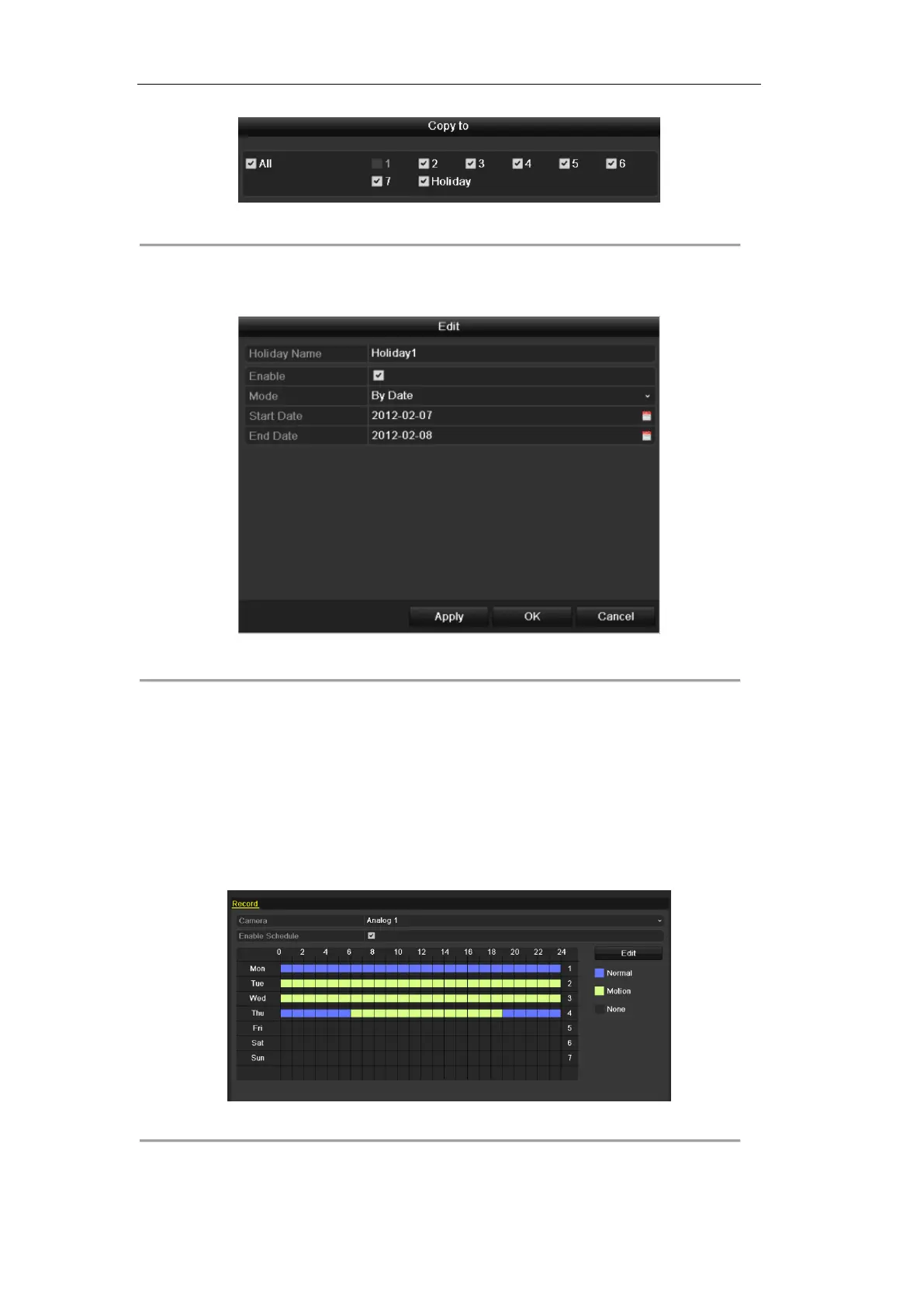

Figure 4.8 Copy Schedule to Other Days
Note: The Holiday option is available in the Schedule dropdown list when you have enabled holiday schedule
in Holiday Settings. Refer to Chapter 4.5 Configuring Holiday Record.
Figure 4.9 Holiday Settings
6) Click OK to save setting and back to upper level menu.
Task 2: Draw the Schedule
Steps:
1) Click the icon on the right to select a record type, including Normal, Motion and None.
Note: To enable Motion triggered recording, you must configure the motion detection settings. For
detailed information, refer to Chapter 7.1.
2) Use the mouse to drag and draw time periods.
Note: Up to 8 periods can be configured for each day.
Figure 4.10 Draw the Schedule
3) You can repeat the above steps to set schedule for other channels. If the settings can also be used to
