User Manual of DS-7100HWI/HVI-SL Series DVR
39
4) Click Handling, and the message box for channel information will pop up.

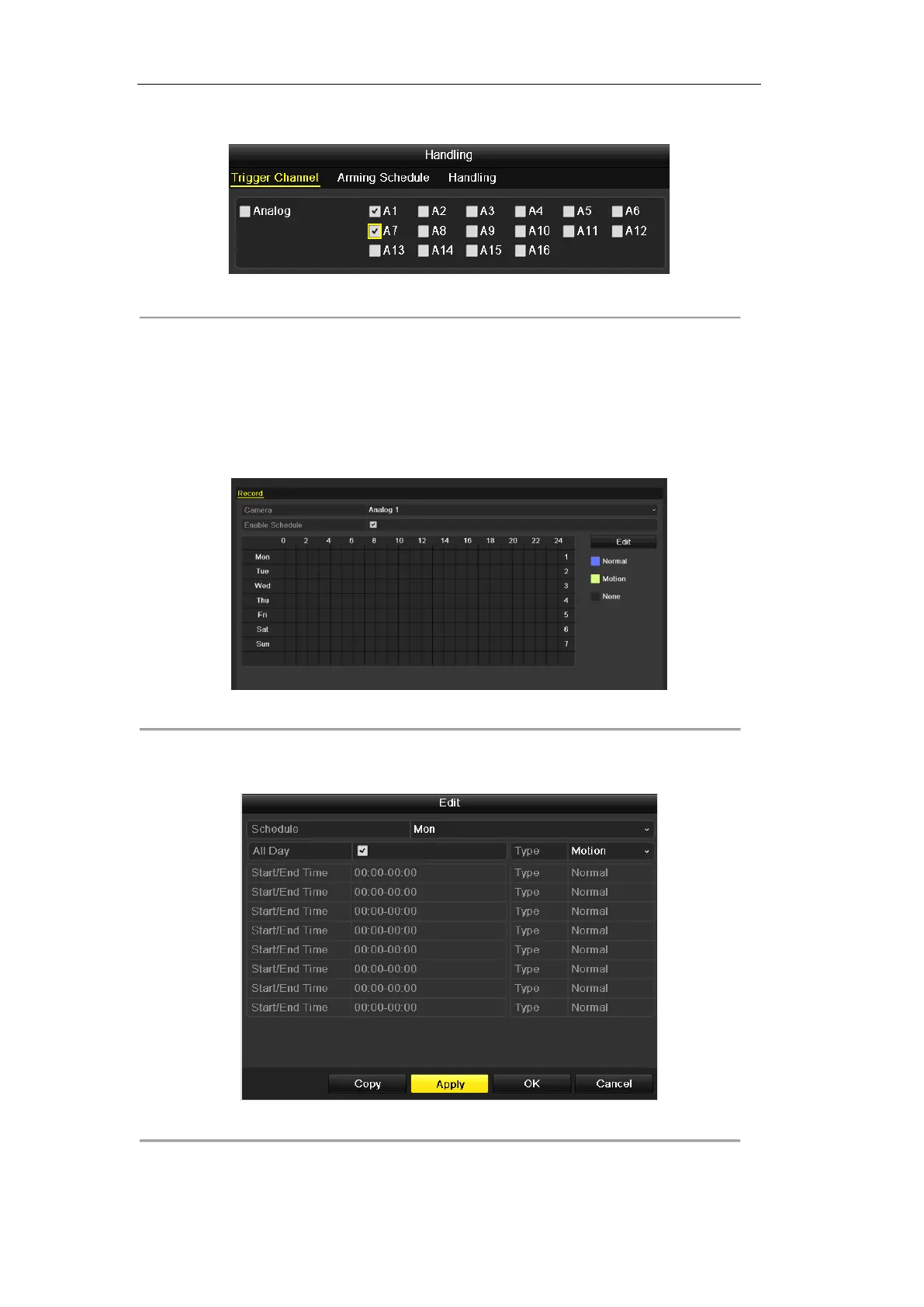

Figure 4.14 Motion Detection Handling
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3. Enter Schedule settings interface.
Menu> Record> Schedule>Record
Figure 4.15 Record Schedule
1) Check the checkbox after the Enable Schedule item.
2) Click Edit.
Figure 4.16 Edit Schedule- Motion Detection
3) In the message box, you can choose the day to which you want to set schedule.
To Next Page
