HIKVISION DS-7104HGHI-E1 User Manual

Digital Video Recorder User Manual
247

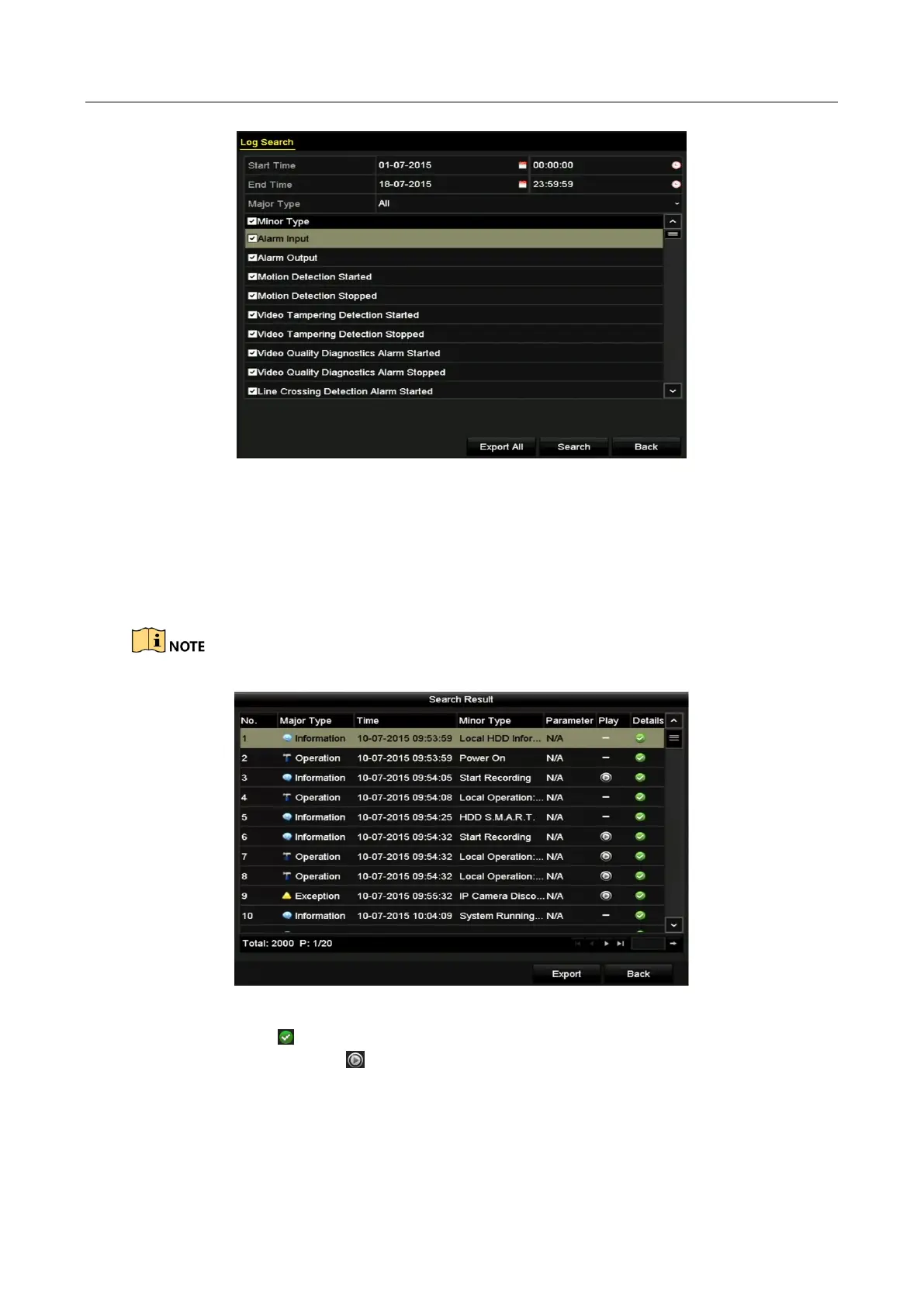

Figure 16-2 Log Search Interface
Step 2 Set the log search conditions to refine your search, including the Start Time, End Time,
Major Type and Minor Type.
Step 3 Click the Search button to start search log files.
Step 4 The matched log files will be displayed on the list shown below.
Up to 2000 log files can be displayed each time.
Figure 16-3 Log Search Results
Step 5 You can click the button of each log or double-click it to view its detailed information.
And you can also click the button to view the related video files if available.

HIKVISION DS-7104HGHI-E1 Specifications

General

Compression	H.264
Storage Interface	1 SATA interface
Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Recording Resolution	720p
Network Interface	1 RJ45 10/100 Mbps
Power Supply	12 VDC
Audio Input	1-ch
Audio Output	1 channel
USB Interface	2 USB 2.0
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
