HIKVISION DS-7104HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
16

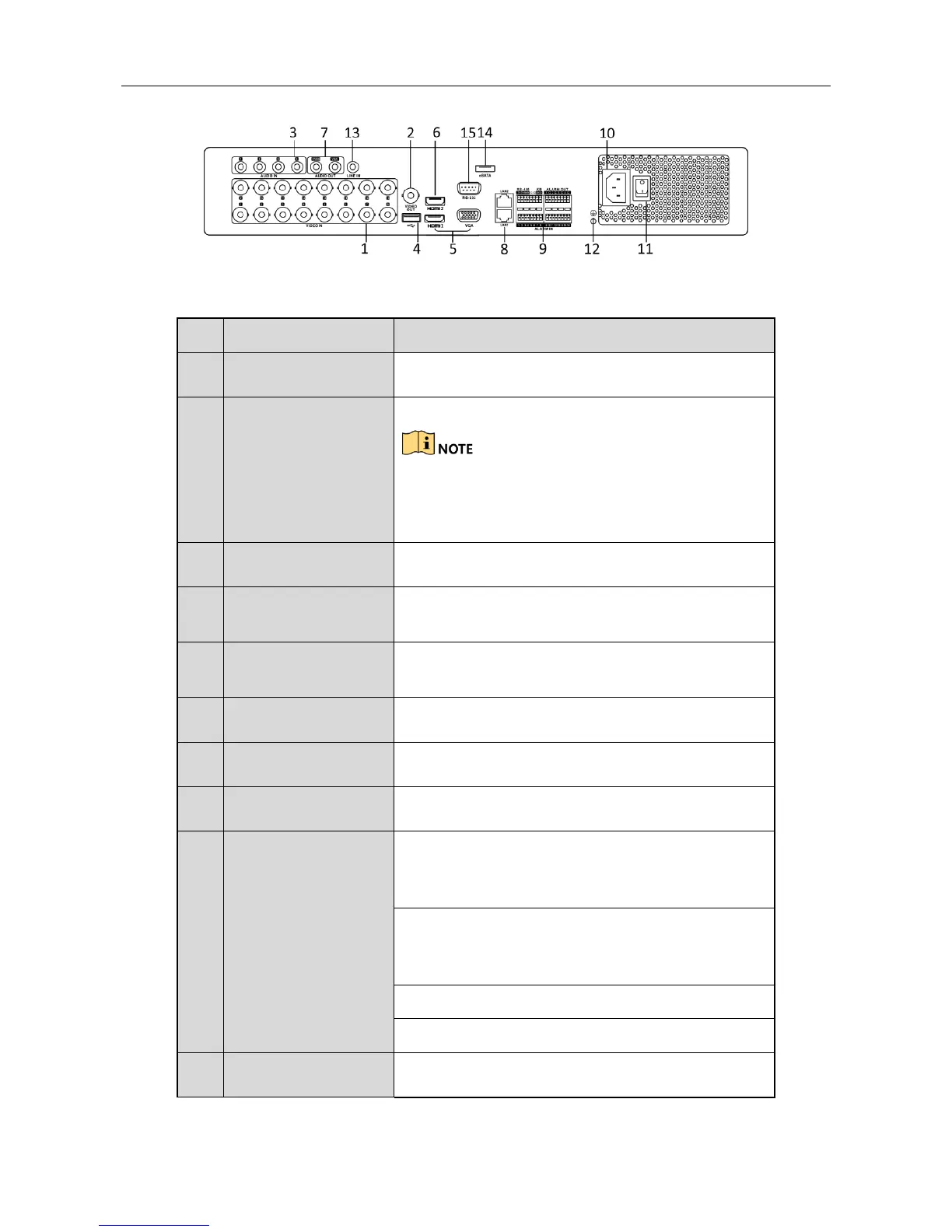

Figure 1-7 Rear Panel 2
Table 1-6 Description of Rear Panel 2
No.
Item
Function Description
1
VIDEO IN
BNC interface for TVI and analog video input.
2
VIDEO OUT
BNC connector for video output.
CVBS output is not provided for DS-7100/7200HGHI-E1,
DS-7200HGHI-E2, DS-7100/7200HGHI-F1,
DS-7200HGHI-F2, DS-7100HQHI-F1/N and
DS-7100HGHI-F1/N series DVR.
3
AUDIO IN
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional
devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local
video output and menu.
6
HDMI2
HDMI2 video output connector.
7
AUDIO OUT
RCA connector.
8
Network Interface
Connector for network
9
RS-485 and Alarm
Interface
Connector for RS-485 devices. T+ and T- pins
connect to R+ and R- pins of PTZ receiver
respectively.
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first DVR’s D+, D- pin should
be connected with the D+, D- pin of the next DVR.
Connector for alarm input.
Connector for alarm output.
10
Power Supply
100 to 240V AC power supply.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
