Digital Video Recorder Quick Start Guide

2.3 RS-485 and Controller Connection

Typical Connection:

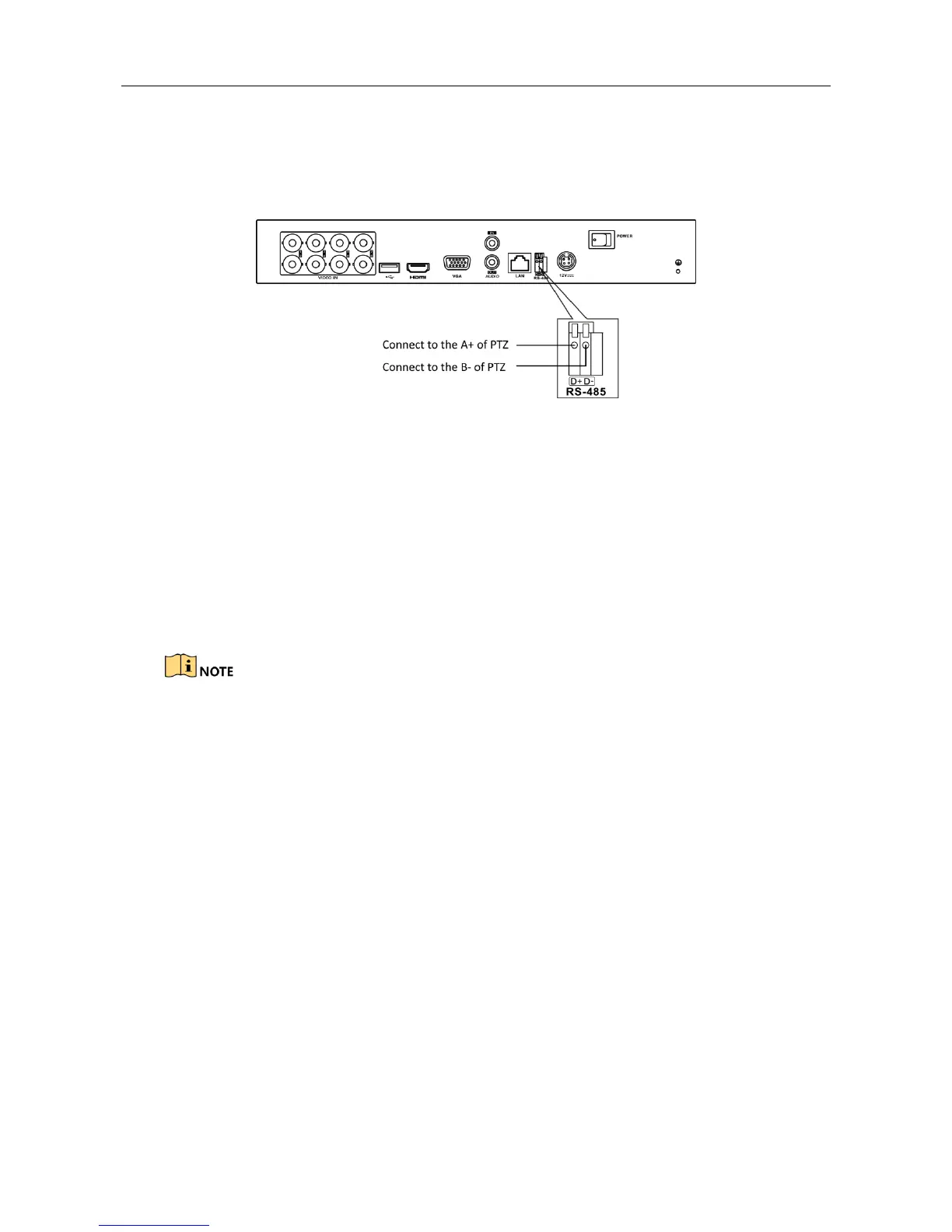

Figure 2-5 Controller Connection A

To connect PTZ to the DVR:

Step 1 Disconnect pluggable block from the RS-485 terminal block.

Step 2 Press and hold the orange part of the pluggable block; insert signal cables into slots and

release the orange part. Ensure signal cables are in tight.

Step 3 Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block.

Fasten stop screws.

Step 4 Connect pluggable block back into terminal block.

Make sure both the controller and DVR are grounded.
