HIKVISION DS-7104HQHI-F1/N User Manual

Digital Video Recorder User Manual
100

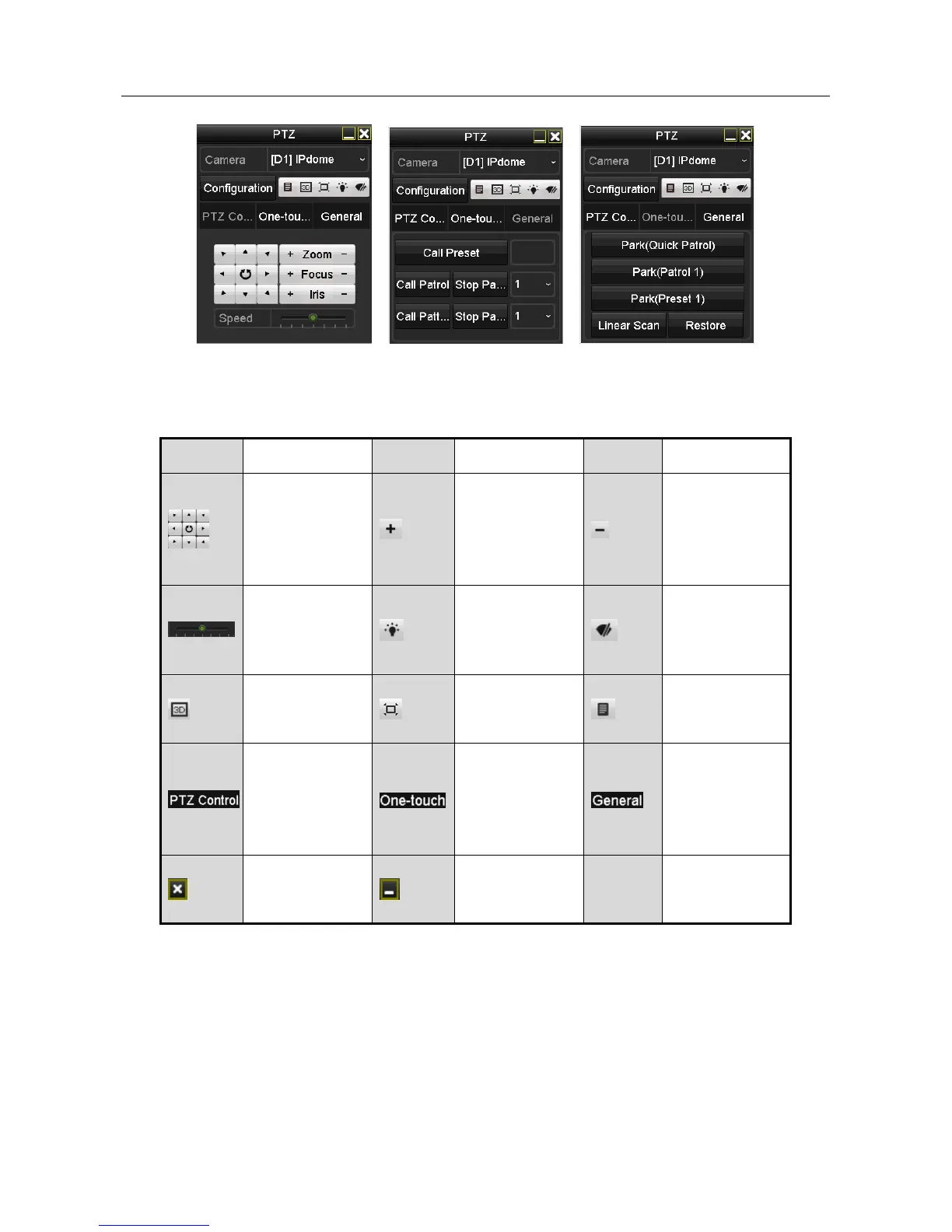

Figure 4-14 PTZ Control Panel
You can refer to Table 4-1 for the description of the PTZ panel icons.
Table 4-1 Description of the PTZ panel icons
Icon Description Icon Description Icon Description
Direction
button and the
auto-cycle
button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
The speed of
the PTZ
movement
Light on/off Wiper on/off
3D-Zoom
Centralization
Menu
Switch to the
PTZ control
interface
Switch to the
one-touch
control
interface
Switch to the
general settings
interface
Exit
Minimize
windows

HIKVISION DS-7104HQHI-F1/N Specifications

General

Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
BNC input ports	1
Video input channels	4 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
