Digital Video Recorder User Manual
138

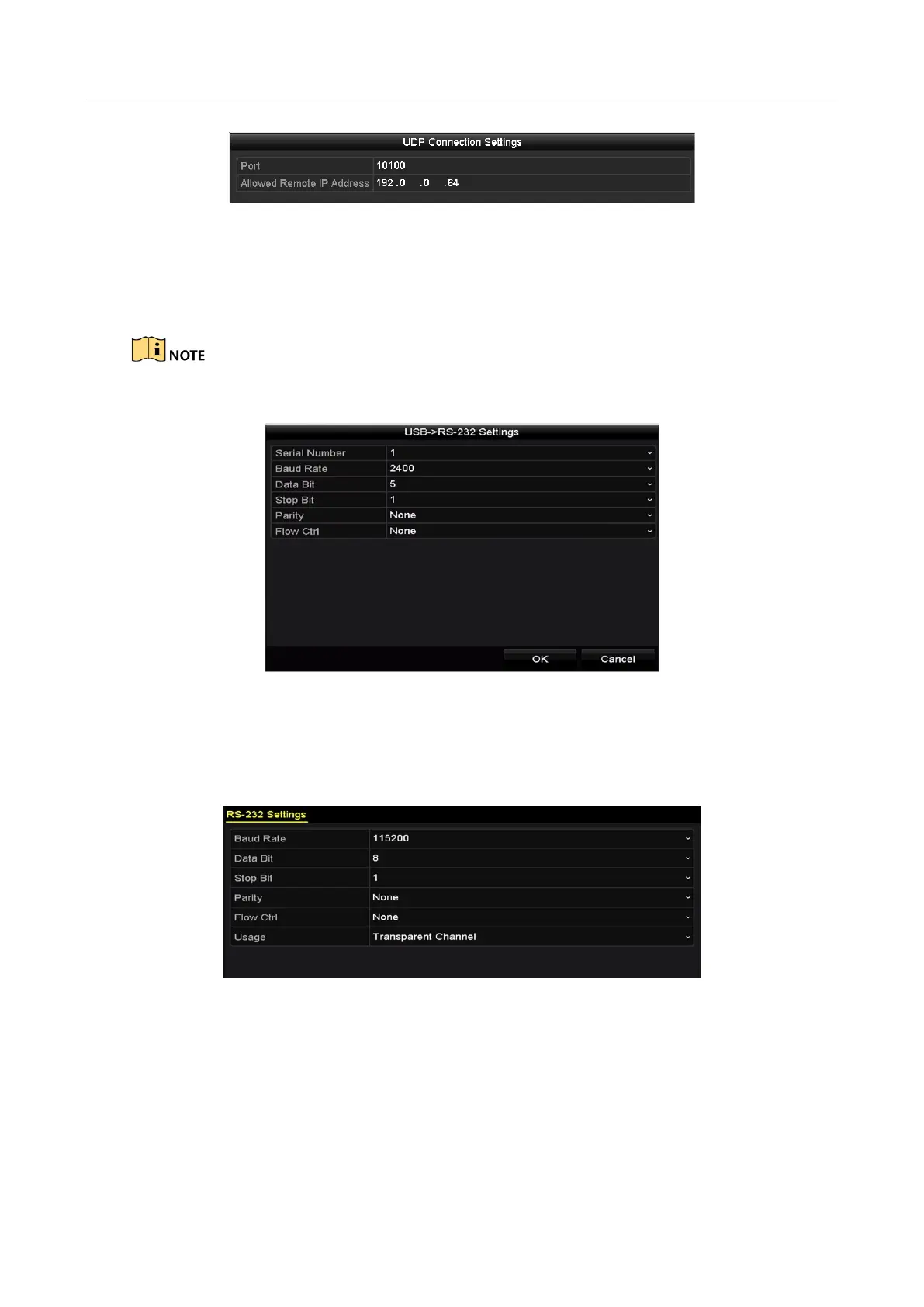

Figure 9-7 UDP Connection Settings
 USB->RS-232 Connection
Configure the port parameters of USB-to-RS-232 convertor, including the serial number of
port, baud rate, data bit, stop bit, parity and flow ctrl.
When using USB->RS-232 convertor mode, the port of USB-to-RS-232 convertor and the POS must
be corresponding to each other, e.g., POS1 must be connected to port1 of the convertor.
Figure 9-8 USB-to-RS-232 Settings
 RS-232 Connection
Connect the DVR and the POS machine via RS-232. The RS-232 settings can be configured
in Menu>Configuration>RS-232. The Usage must be set to Transparent Channel.
Figure 9-9 RS-232 Settings
 Multicast Connection
When connecting the DVR and the POS machine via Multicast protocol, set the multicast
address and port.

HIKVISION DS-7104HQHI-K1 Specifications

General

Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	1
Video input channels	4 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
