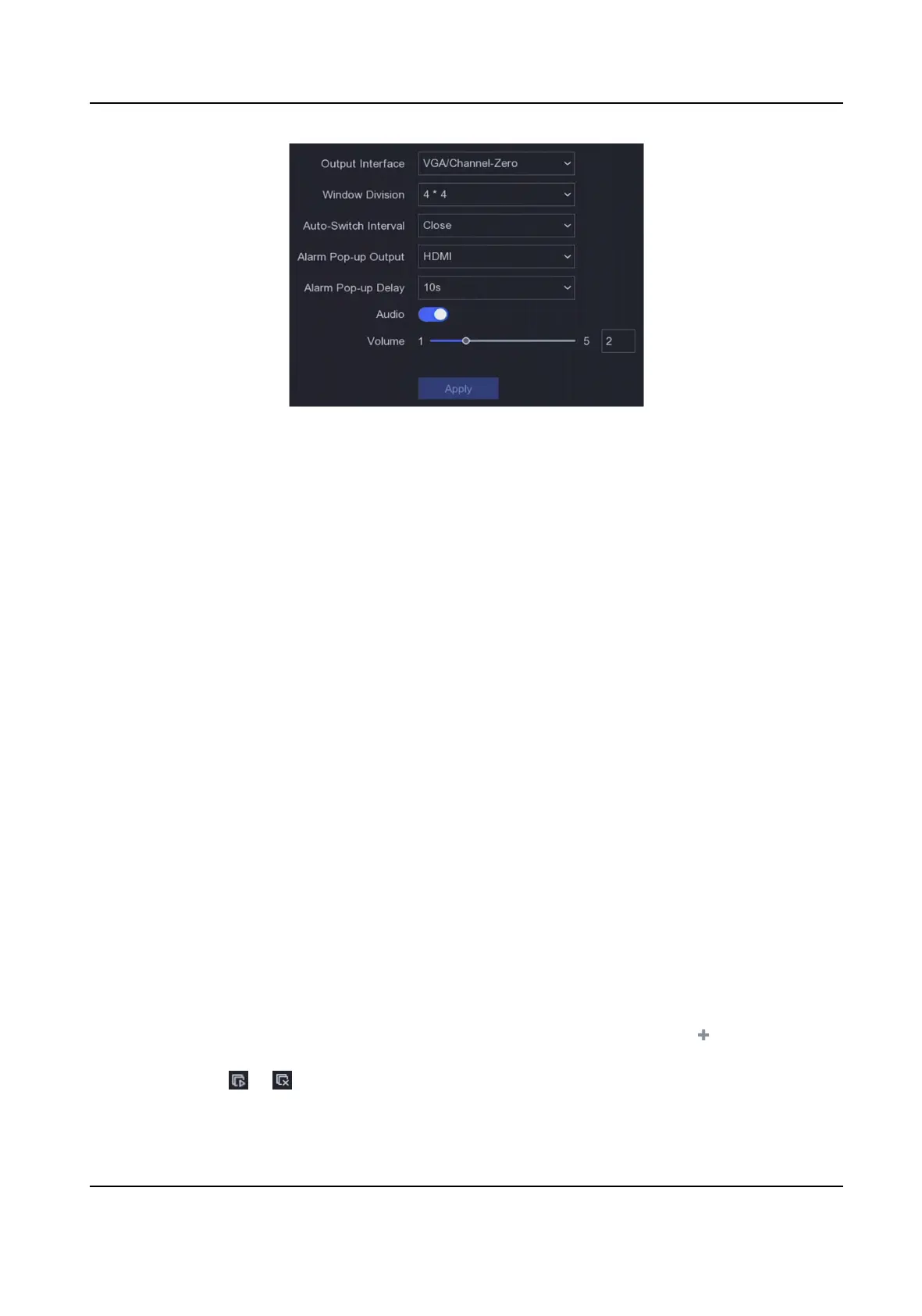

Figure 6-4 Live View-General
2. Congure the Live View parameters.
Window Division
Select the live view window division.
Auto Switch Interval
The me to dwell in a camera before switching to next camera when auto-switch in live view
is enabled.
Alarm Pop-up Output
Select the output to show alarm video.
Alarm Pop-up Delay
Set the
me to show alarm event image.
Audio
Turn on/o audio output for the selected video output.
Volume
Adjust the live view, playback, and two-way audio volume for the selected video output
interface.
3. Click Apply.
Congure
Live View Layout
Steps
1. Go to
Conguraon → System → Live View → View .
2. Set Output Interface.
3. Select a window, and double click a camera the list you would like to display. means no
camera is displayed on the window.
4.
Oponal: Click or to start or stop live view of all cameras.
5. Click Apply.
Network Video Recorder User Manual
39

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
