HIKVISION DS-7104NI-Q1 User Manual

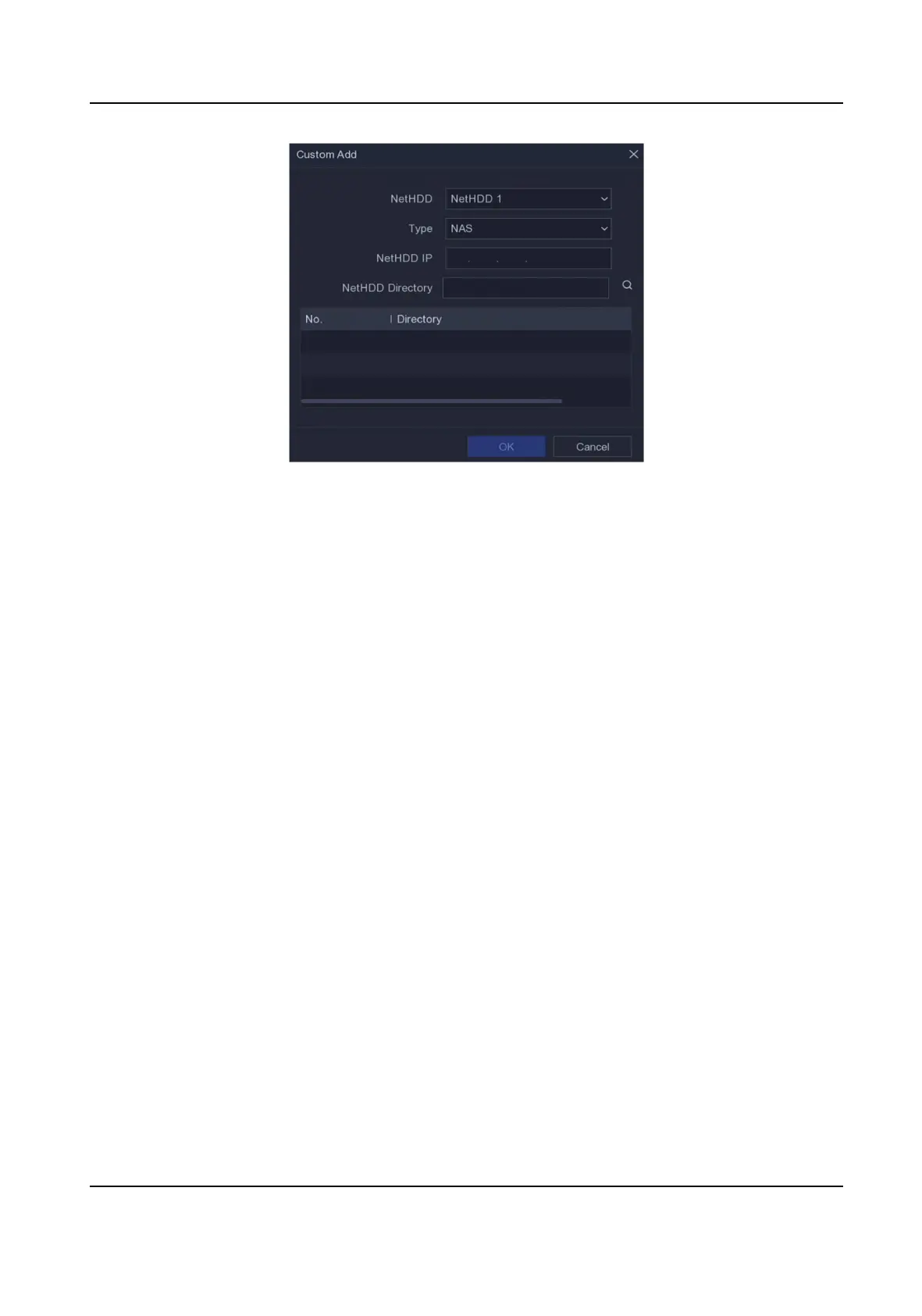

Figure 5-16 Add NetHDD
7. Select NAS disk from the list, or manually enter the directory in NetHDD Directory.
8. Click OK. The added NetHDD will be displayed in the storage device list.
5.4.2
Congure Recording Schedule
Video recorder will automacally start/stop recording according to the congured schedule.
Congure
Connuous Recording
Steps
1. Go to
Conguraon → Record → Parameter .
2. Set the connuous main stream/sub-stream recording parameters for the camera. Refer to
Congure Recording Parameter for details.
3. Go to
Conguraon → Record → Schedule .
4. Select recording type as Connuous. Refer to Edit Schedule for details.
Congure
Event Recording
You can congure the recording triggered by the moon detecon, line crossing detecon, and
intrusion detecon.
Steps
1. Go to
Conguraon → Event → Smart Event .
2. Congure the event detecon and select the channels to trigger the recording when an event
occurs. Refer to Smart Event for details.
3. Go to
Conguraon → Record → Parameter .
Network Video Recorder User Manual
32

HIKVISION DS-7104NI-Q1 Specifications

General

Certification	FCC 15 B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3
Product color	Black
Output current	1 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	36 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	5
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Power over Ethernet (PoE) ports quantity	4
Video codecs	H.265+/H.265/ H.264+/H.264
Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Wi-Fi	No

Weight and Dimensions

Depth	225 mm
Width	265 mm
Height	48 mm
Weight	1000 g
