HIKVISION DS-7108HGHI-F1/N

Digital Video Recorder User Manual
43
8
GND
Ground
9
Power Supply
12 VDC power supply.

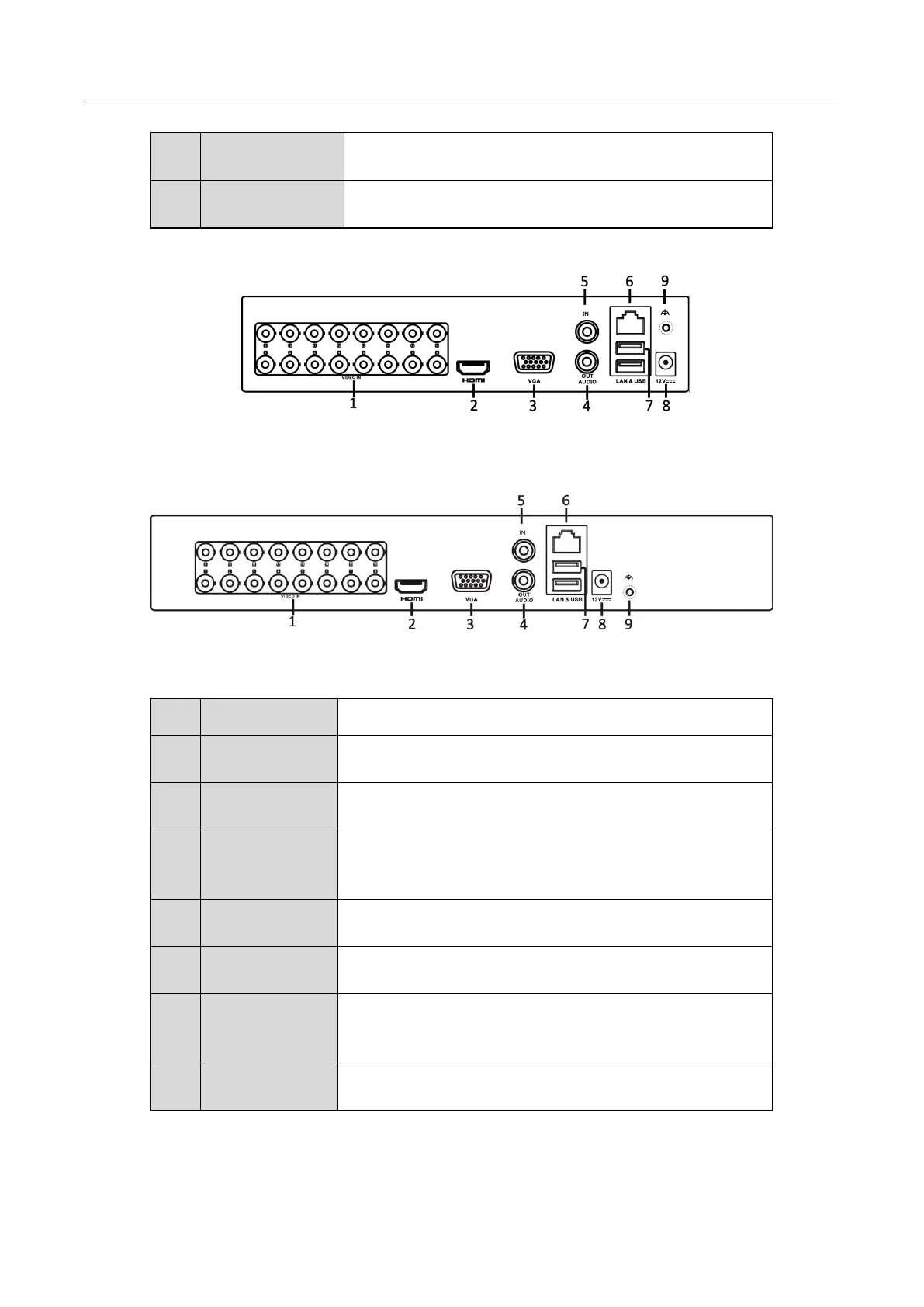

Rear Panel 2:
Figure 1-12 Rear Panel of DS-7200HGHI-F (/N)
Rear Panel 3:
Figure 1-13 Rear Panel of DS-7200HGHI-E
Table 1-11 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC interface for HDTVI and analog video input.
2
HDMI
HDMI video output connector.
3
VGA
DB15 connector for VGA output. Display local video
output and menu.
4
AUDIO OUT
RCA connector
5
AUDIO IN
RCA connector
6
Network
Interface
Connector for network
7
USB Port
Universal Serial Bus (USB) port for additional devices.
