HIKVISION DS-7108HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
27

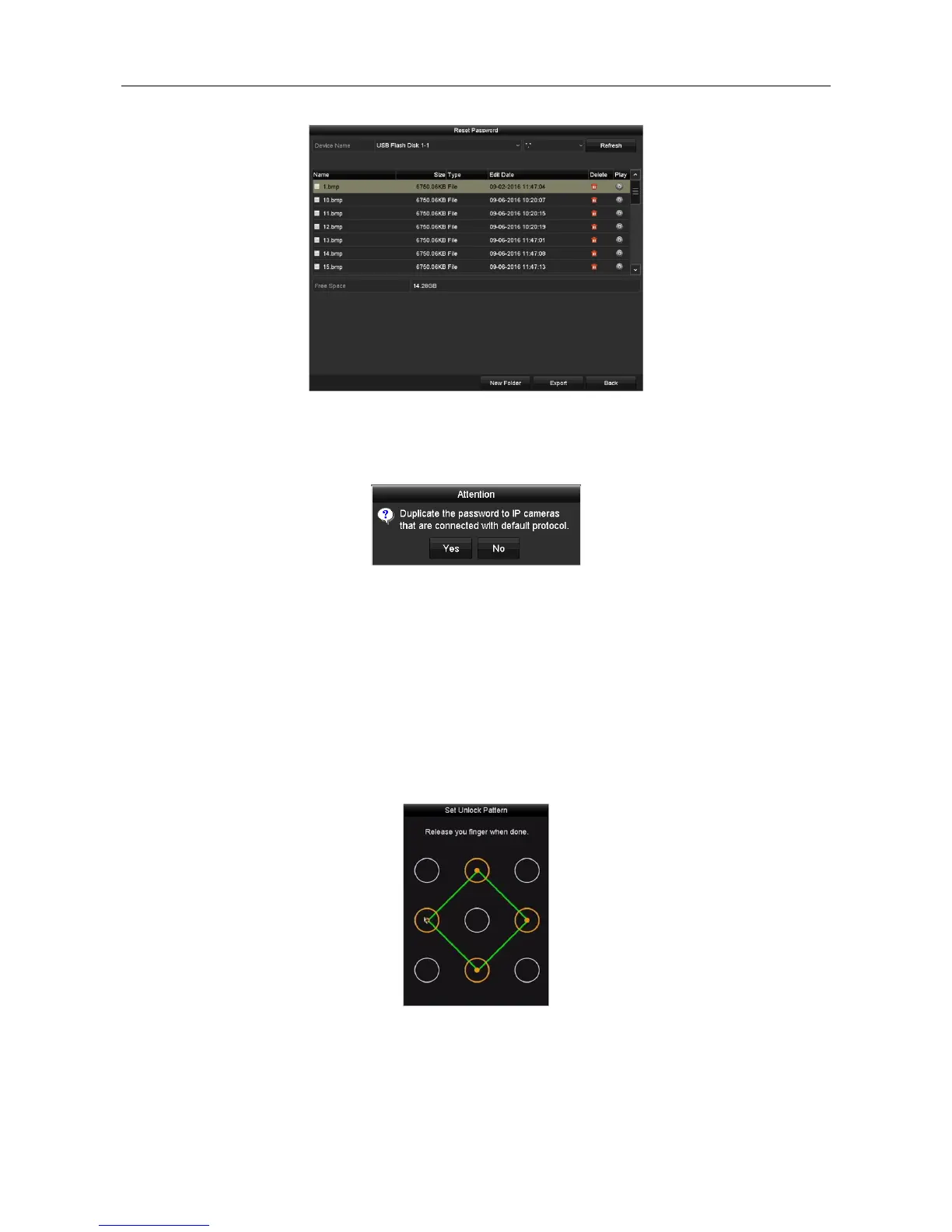

Figure 3-6 Export GUID
Step 5 After exporting GUID, the Attention box pops up as below. Click Yes to duplicate the
password or No to cancel it.
Figure 3-7 Duplicate the Password
3.4 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can enter the following interface to configure the device unlock
pattern.
Step 1 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when
the pattern is done.
Figure 3-8 Draw the Pattern

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
