HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
99

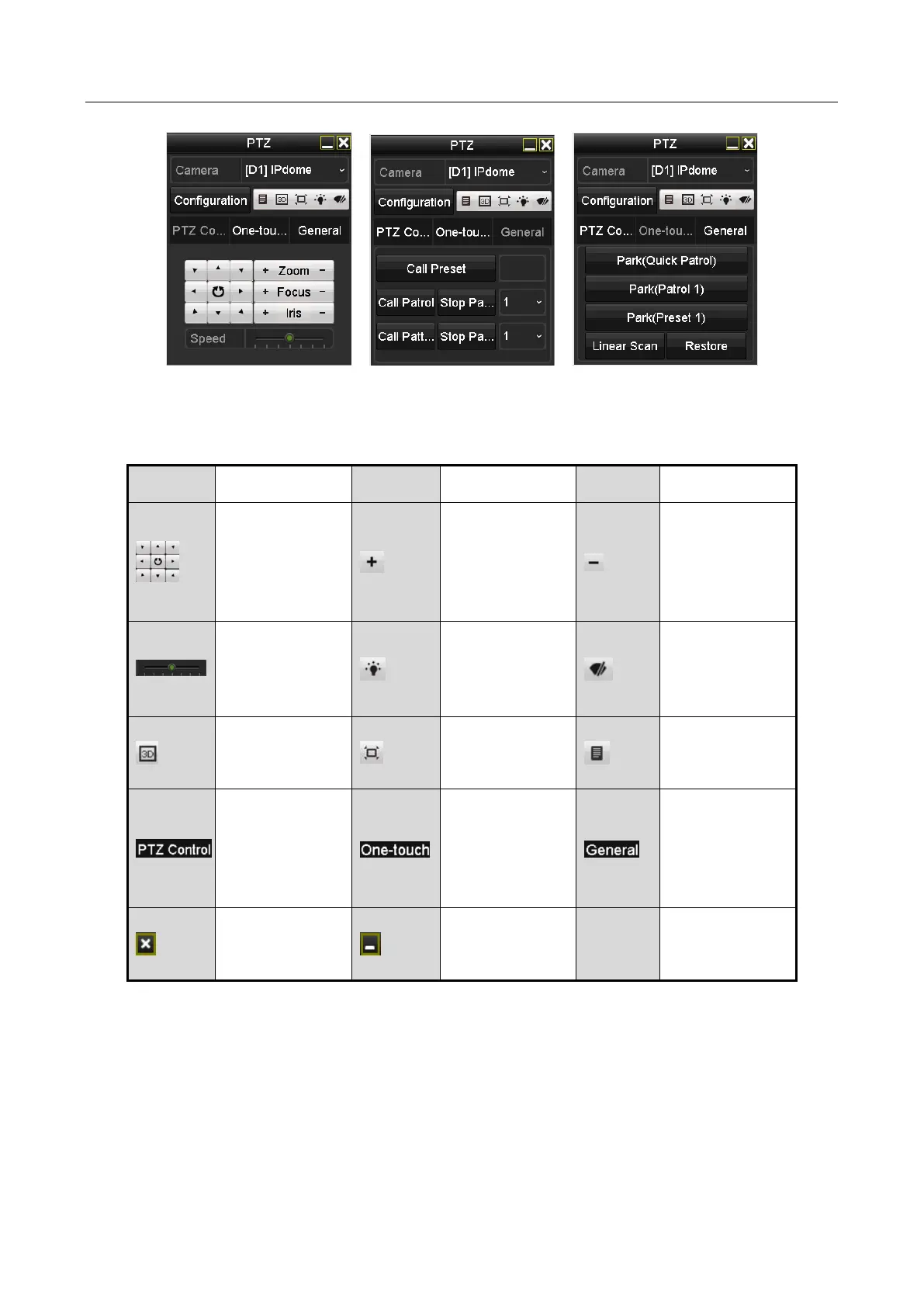

Figure 4-14 PTZ Control Panel
You can refer to Table 4-1 for the description of the PTZ panel icons.
Table 4-1 Description of the PTZ panel icons
Icon
Description
Icon
Description
Icon
Description
Direction
button and the
auto-cycle
button
Zoom+, Focus+,
Iris+
Zoom-, Focus-,
Iris-
The speed of
the PTZ
movement
Light on/off
Wiper on/off
3D-Zoom
Centralization
Menu
Switch to the
PTZ control
interface
Switch to the
one-touch
control
interface
Switch to the
general settings
interface
Exit
Minimize
windows

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
