Digital Video Recorder User Manual
258

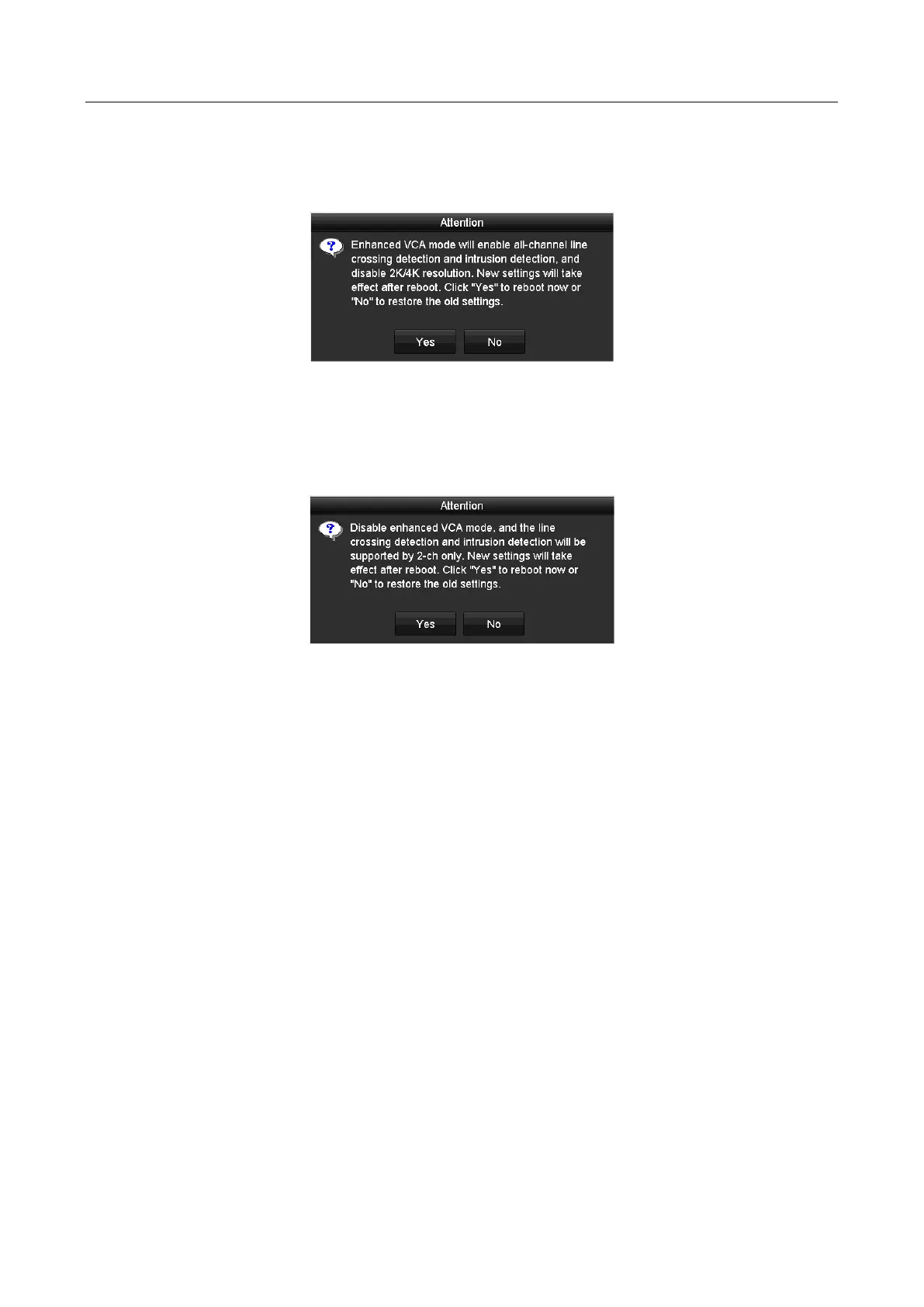

 Enhanced VCA Mode: For DS-7208/7216HUHI-F/N series DVR, you can check the checkbox
to enable enhanced VCA mode. When you enable it and click Apply, the attention box
pops up as below. Click Yes to apply the function and reboot the device.
Figure 17-10 Enable Enhanced VCA Mode
If the enhanced VCA mode has been enabled, you can disable it by unchecking the
checkbox. When you disable it and click Apply, the attention box pops up as below. Click
Yes to apply the function and reboot the device.
Figure 17-11 Disable Enhanced VCA Mode
Step 4 Click the Apply button to save the settings.
17.5 Managing User Accounts
Purpose
There is a default account in the DVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
17.5.1 Adding a User
Step 1 Enter the User Management interface.
Menu >Configuration>User

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
