HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
201

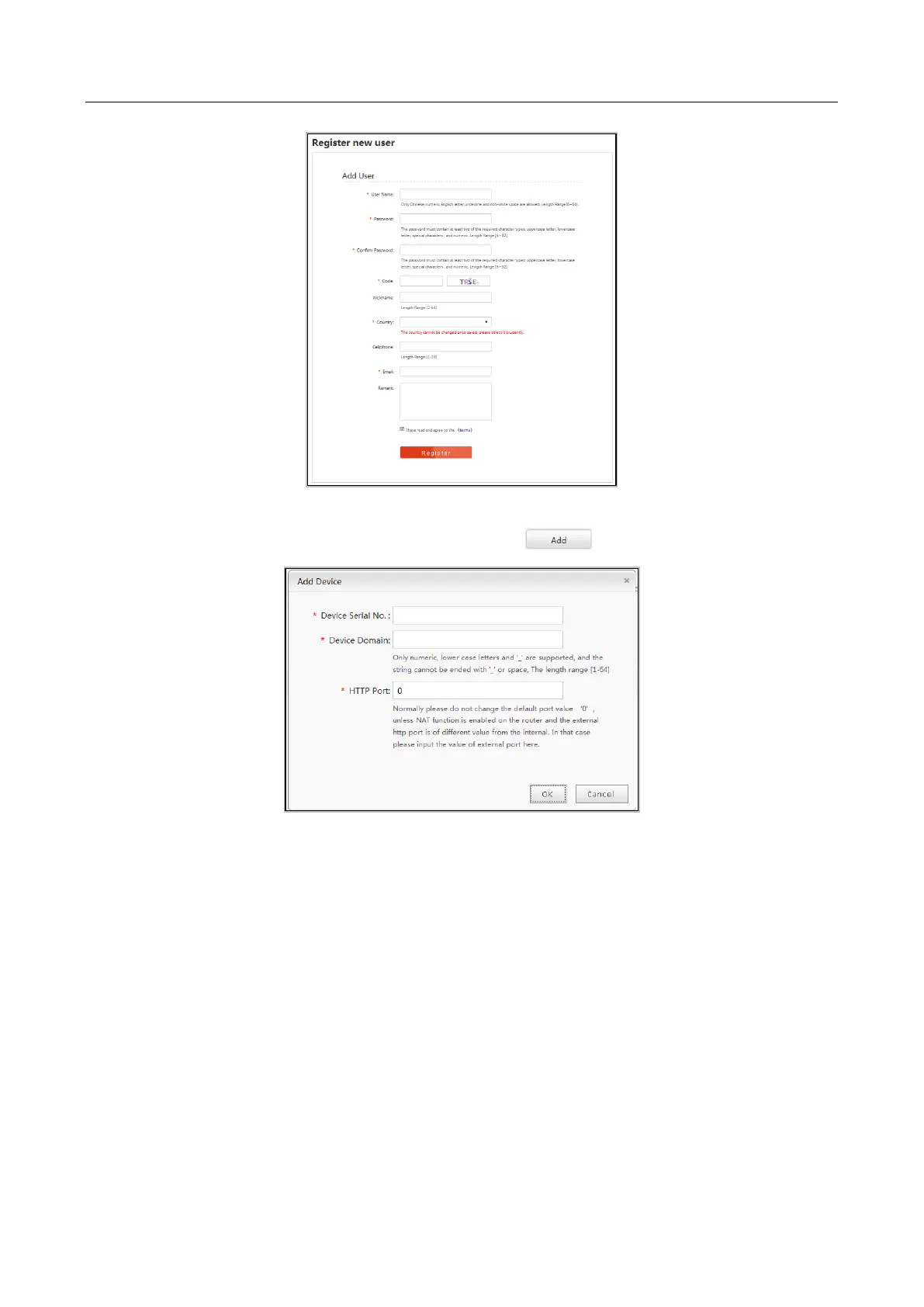

Figure 12-10 Register an Account
3) In the Device Management interface, click to register the device.
Figure 12-11 Register the Device
4) Input Device Serial No., Device Domain (Device Name) and HTTP Port. And click OK
to add the device.
 Access the Device via Web Browser or Client Software
After having successfully registered the device on the HiDDNS server, you can access
your device via web browser or Client Software with the Device Domain (Device
Name).
 OPTION 1: Access the Device via Web Browser
Open a web browser, and enter http://www.hiddns.com/alias in the address bar. Alias
refers to the Device Domain on the device or the Device Name on the HiDDNS server.
Example: http://www.hiddns.com/dvr

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
