HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
248

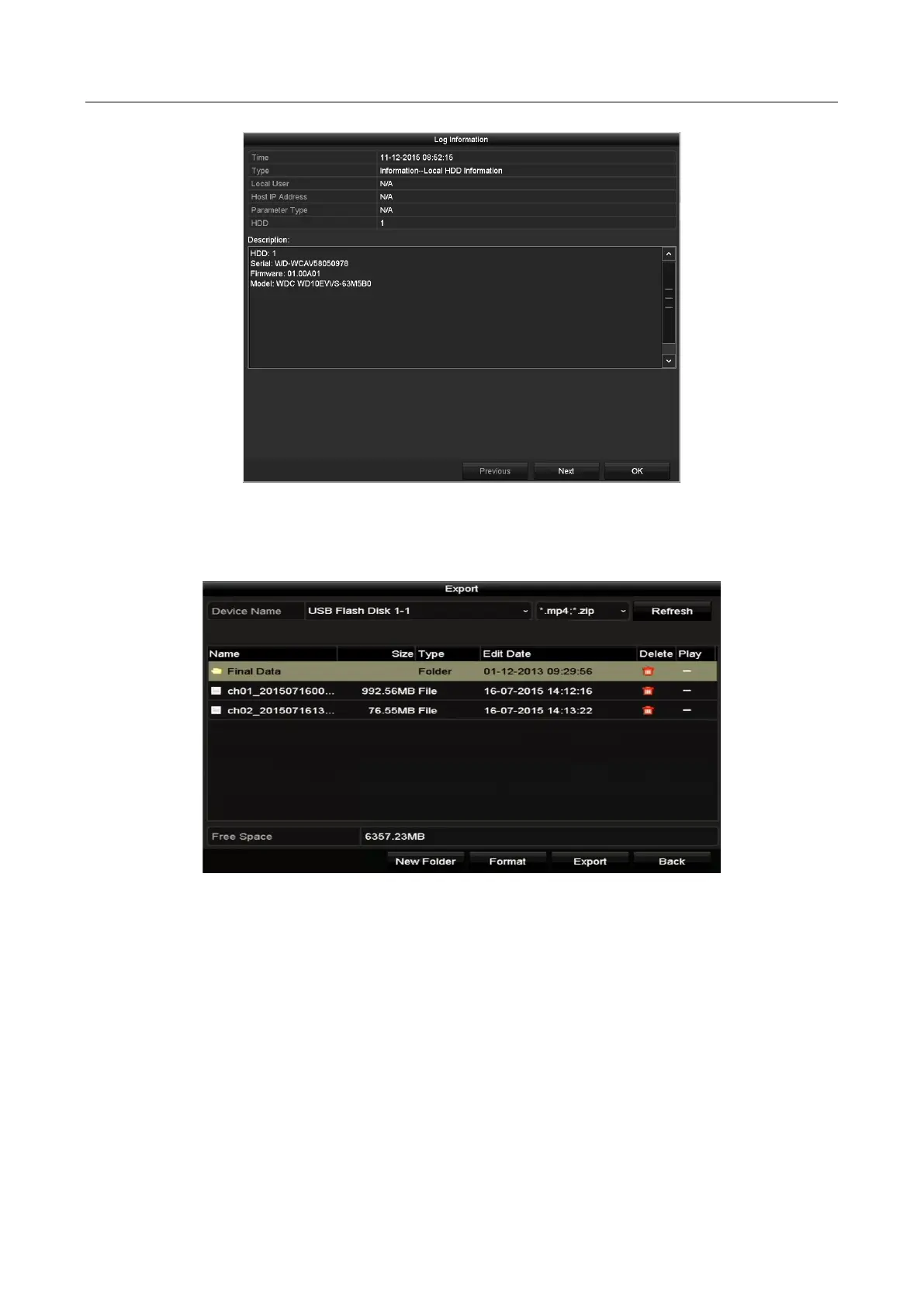

Figure 16-4 Log Information Interface
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-5.
Figure 16-5 Export Log Files
Step 7 Select the backup device from the dropdown list of Device Name.
Step 8 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
