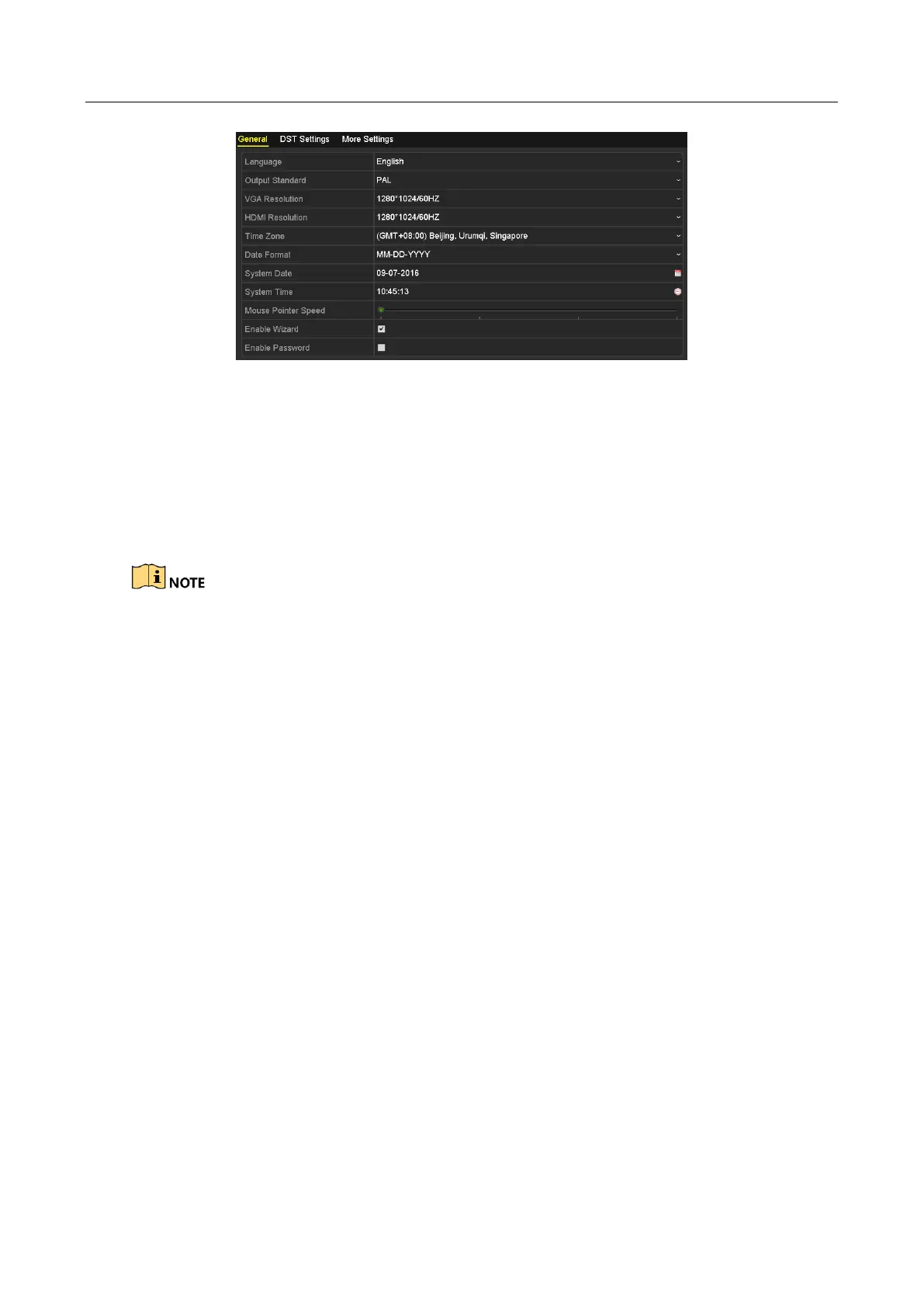

Figure 17-3 General Settings Interface (for Independent VGA and HDMI Output)
Step 3 Configure the following settings:
 Language: The default language used is English.
 Output Standard: Select the output standard to be PAL or NTSC.
 VGA/HDMI Resolution: Select the output resolution, which must be the same with the
resolution of the VGA/HDMI display.

For DS-7300/8100/9000HUHI-F/N series, VGA/HDMI1 Resolution and HDMI2 Resolution
can be configured separately. Up to 1920 × 1080/60 Hz resolution is supported for
VGA/HDMI1 output and up to 4K (3840 × 2160)/30 Hz resolution is supported for HDMI2
output.

For DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series DVR, the HDMI and VGA
interfaces can be configured to be simultaneous or independent (Refer to Chapter 17.4
Configuring More Settings for reference). If you have configured HDMI/VGA simultaneous
output, you can set the VGA/HDMI Resolution. If you have configured independent HDMI
and VGA output, you can set the VGA Resolution and HDMI Resolution independently. Up
to 1920 × 1080/60 Hz resolution is supported for VGA output and up to 4K (3840 × 2160)/30
Hz resolution is supported for HDMI output.
 Time Zone: Select the time zone.
 Date Format: Select the date format.
 System Date: Select the system date.
 System Time: Select the system time.
 Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
 Enable Wizard: Enable/disable the Wizard when the device starts up.
 Enable Password: Enable/disable the use of the login password.

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
