HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
54

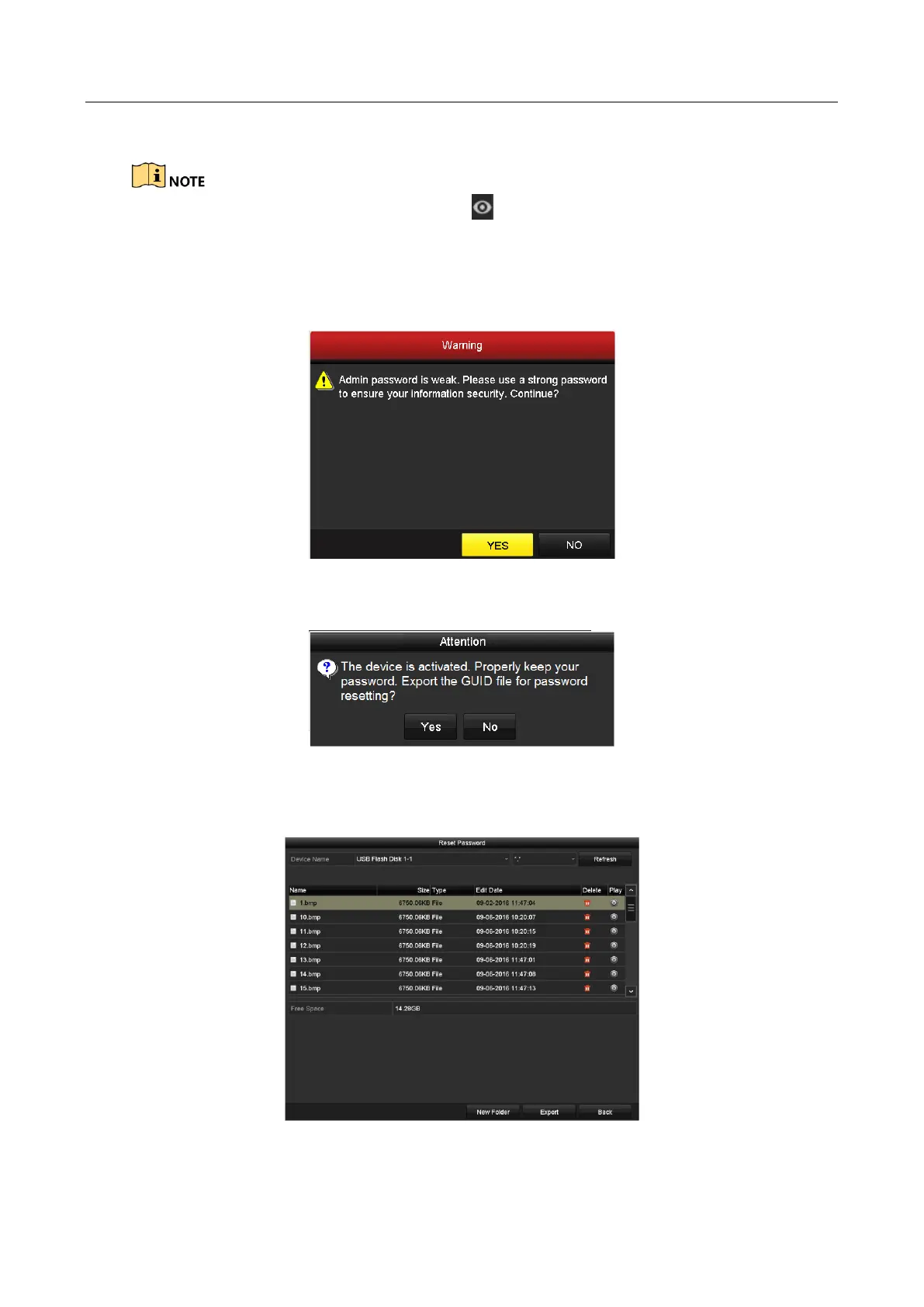

Step 2 Click OK to save the password and activate the device.

Clear-text password is supported. Click the icon and you can see the clear text of the
password. Click the icon again and the content of the password restores invisible.

For the old version device, if you update it to the new version, the following dialog box will
pop up once the device starts up. You can click YES and follow the wizard to set a strong
password.
Figure 2-4 Warning
Step 3 After the device is activated, the Attention box pops up as below.
Figure 2-5 Attention
Step 4 (Optional) Click Yes to export GUID. The Reset Password interface pops up. Click Export to
export GUID to the USB flash disk for password resetting.
Figure 2-6 Export GUID

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
