HIKVISION DS-7108HGHI-F1 User Manual

Digital Video Recorder User Manual
60
Step 2 Click Apply button.

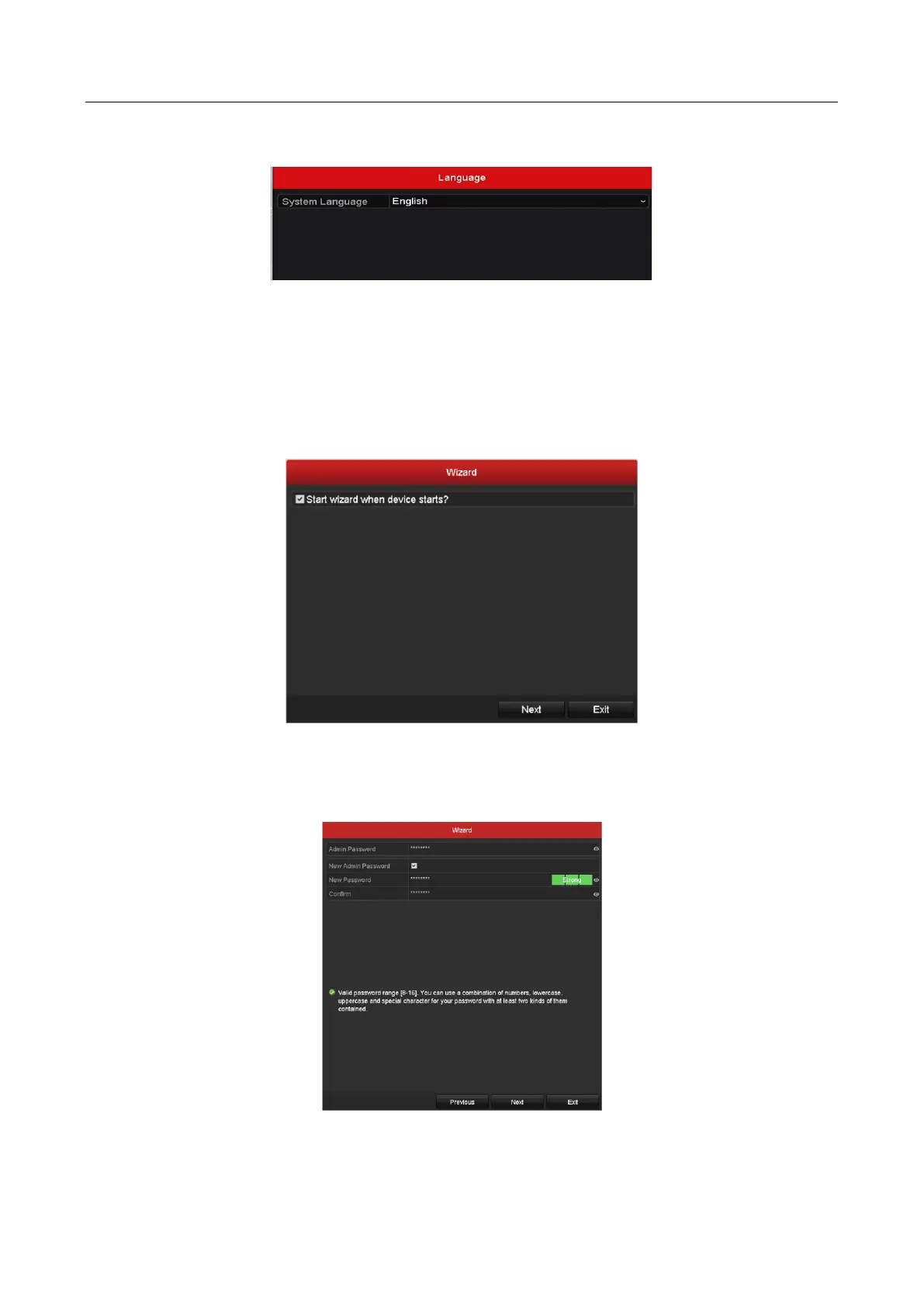

Figure 2-16 Language Configuration
Operating the Setup Wizard:
Step 1 The Start Wizard can walk you through some important settings of the device. If you don’t
want to use the Start Wizard at that moment, click Exit. You can also choose to use the
Start Wizard next time by leaving the “Start wizard when device starts?” checkbox
checked.
Figure 2-17 Start Wizard Interface
Step 2 Click Next button to enter the Change the Password interface. Input the Admin Password
or change the password.
Figure 2-18 Change the Password

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
