Digital Video Recorder User Manual
28
No.
Name Function Description
Checks the checkbox.
Plays or pauses the playing of video files in Playback
mode.
Advances the video by a single frame in single-frame
Playback mode.
Stops/starts auto switch in Auto-switch mode.
5 POWER Power on/off switch.
6 JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the
playback mode.
Controls the movement of the PTZ camera in PTZ
control mode.
Moves the active selection up and down in a menu.
7 USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
8 IR Receiver Receiver for IR remote control.
Front Panel 6:

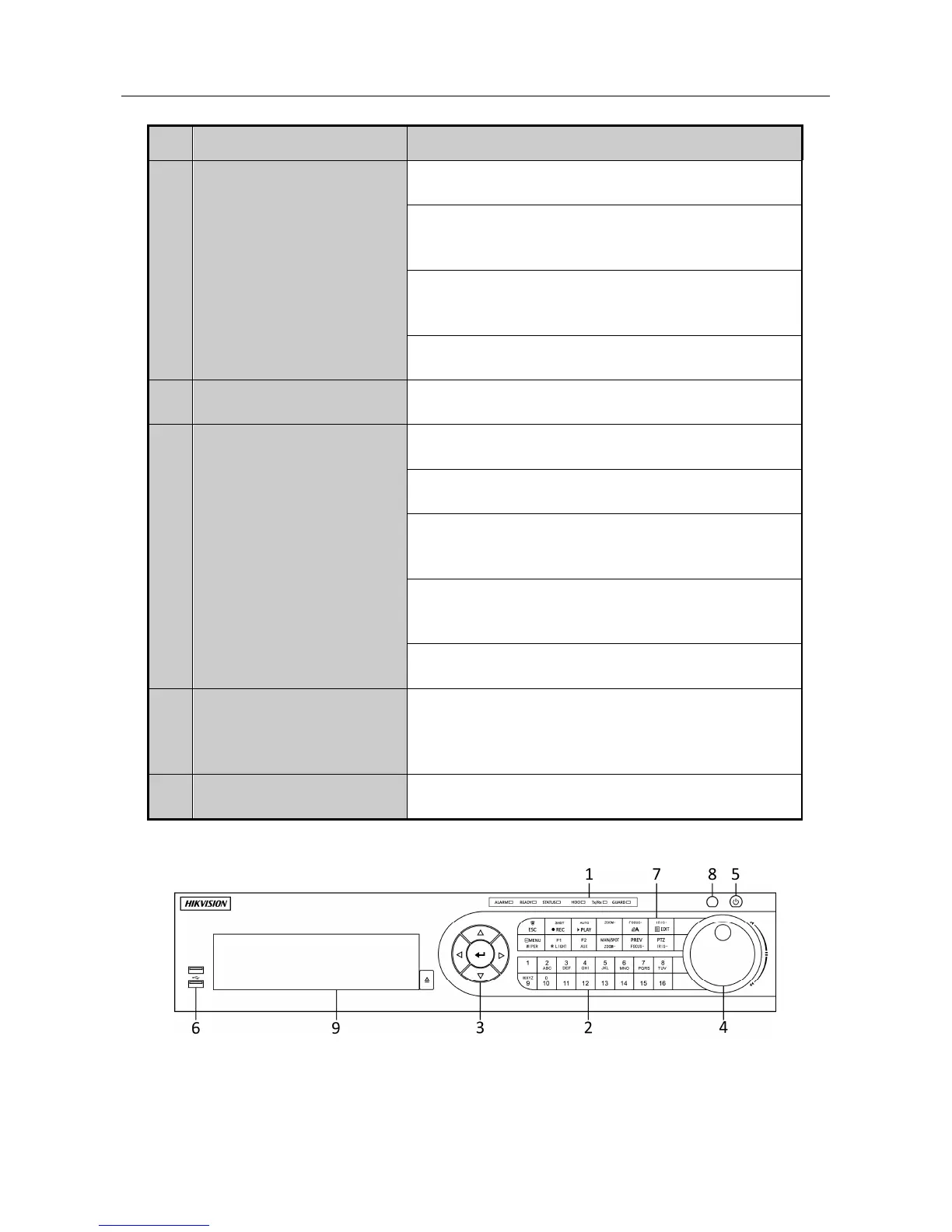

Figure 1-6 Front Panel of DS-8100HQHI-F/N and DS-8100HUHI-F/N
