HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
45

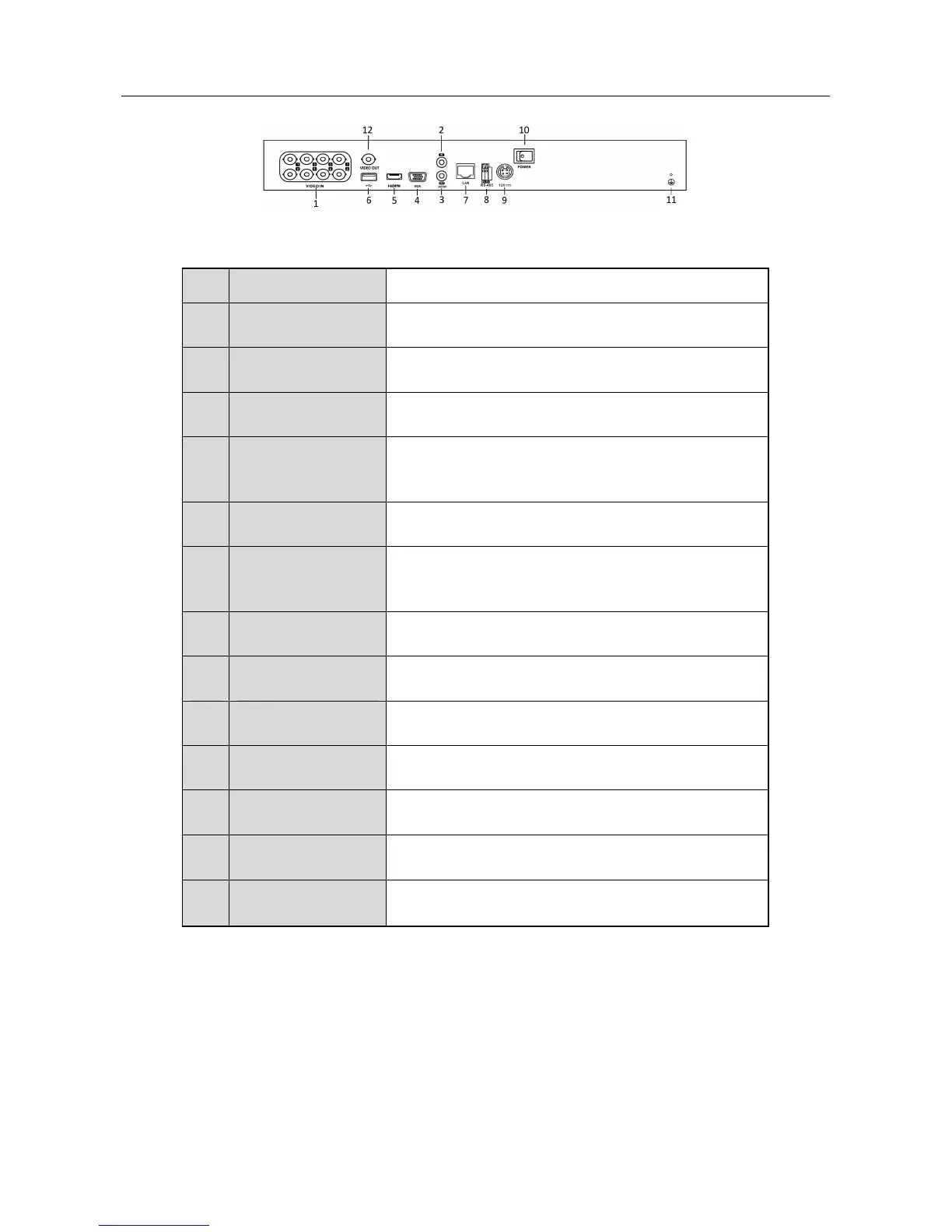

Figure 1-15 Rear Panel of DS-7200HQHI-F2/N
Table 1-12 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector
4 VGA
DB15 connector for VGA output. Display local
video output and menu.
5 HDMI HDMI video output connector.
6 USB Port
Universal Serial Bus (USB) port for additional
devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply 12VDC power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground
12
VIDEO OUT
BNC connector for video output.
13
ALARM
Connector for alarm input/output.
Rear Panel 6:

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
