HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
44

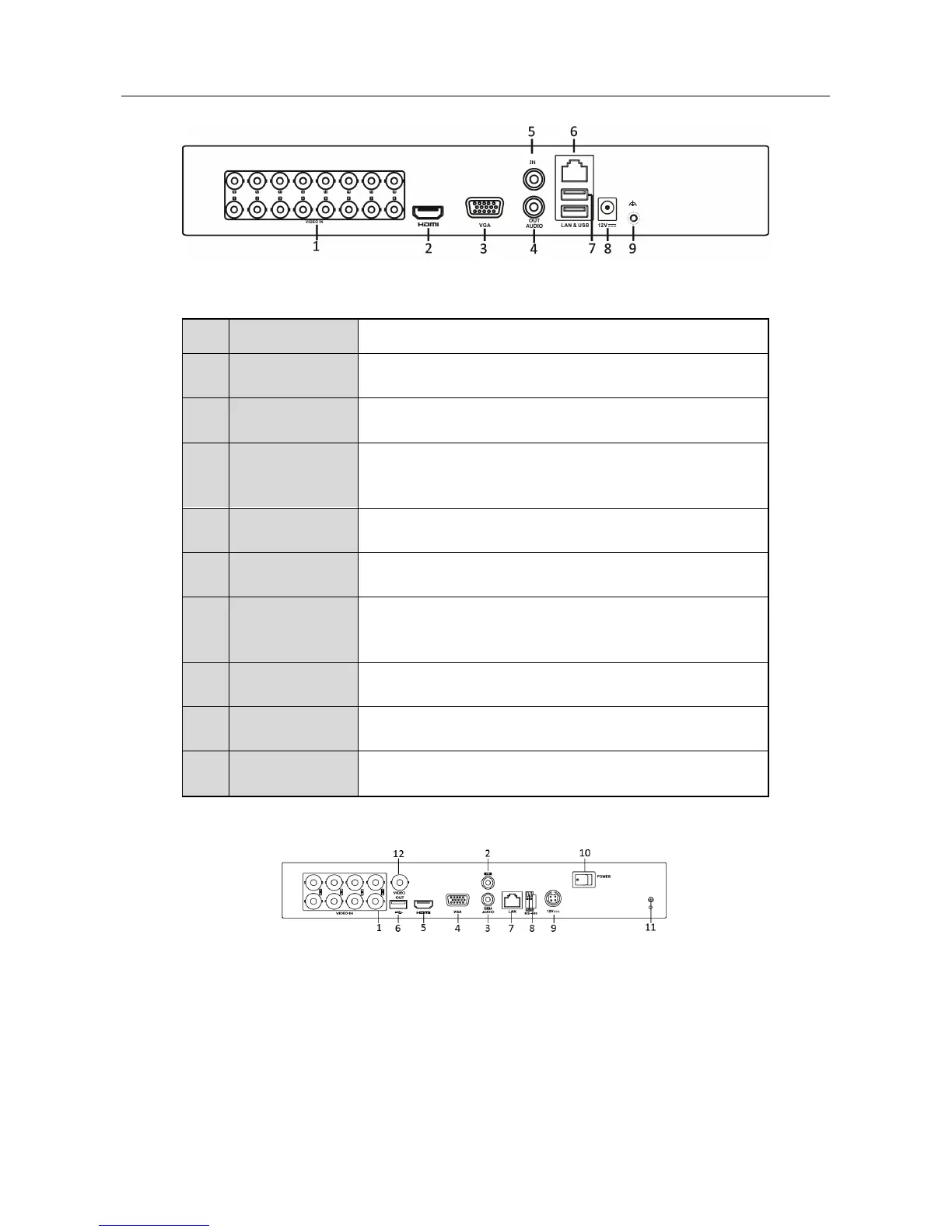

Figure 1-13 Rear Panel of DS-7200HGHI-E
Table 1-11 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 HDMI HDMI video output connector.
3 VGA DB15 connector for VGA output. Display local video
output and menu.
4 AUDIO OUT RCA connector
5 AUDIO IN RCA connector
6 Network
Interface
Connector for network
7 USB Port Universal Serial Bus (USB) port for additional devices.
8 Power Supply 12 VDC power supply.
9 GND Ground
Rear Panel 4:
Figure 1-14 Rear Panel of DS-7200HQHI-F1/N
Rear Panel 5:

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
