HIKVISION DS-7108HQHI-K1 Quick Start Guide

Digital Video Recorder Quick Start Guide
7
Fix Mounting Ear
Open Front Panel
Insert HDD
Fix-on-Bottom Installation

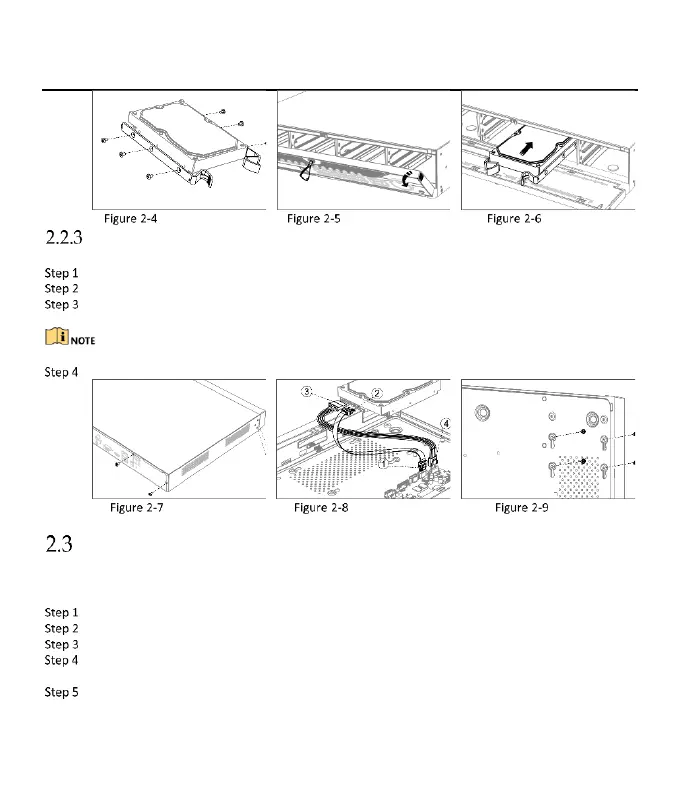

Fix-on-bottom installation is applicable when it requires to install the HDD at the internal bottom.
Unfasten screws on each panel to remove the device cover. Refer to Figure 2-7.
Connect the data cable and power cable. Refer to Figure 2-8.
Match HDD screw threads with the reserved holes on the device bottom, and fix HDD with screws. Refer
to Figure 2-9.
You can repeat the steps above to install other HDDs.
Reinstall the device cover and fasten screws.
Remove Cover
Connect Cable
Fix HDD
RS-485 and Controller Connection
Use RS- 485 interface to connect PTZ with DVR.
Before you start
Ensure both controller and DVR are grounded.
Pull out the pluggable block at the RS-485 terminal block.
Press and hold the orange part of the pluggable block, insert signal cables into slots.
Release the orange part. Ensure signal cables are in tight.
Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block. Fasten stop
screws.
Plug pluggable block back into terminal block.

HIKVISION DS-7108HQHI-K1 Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
