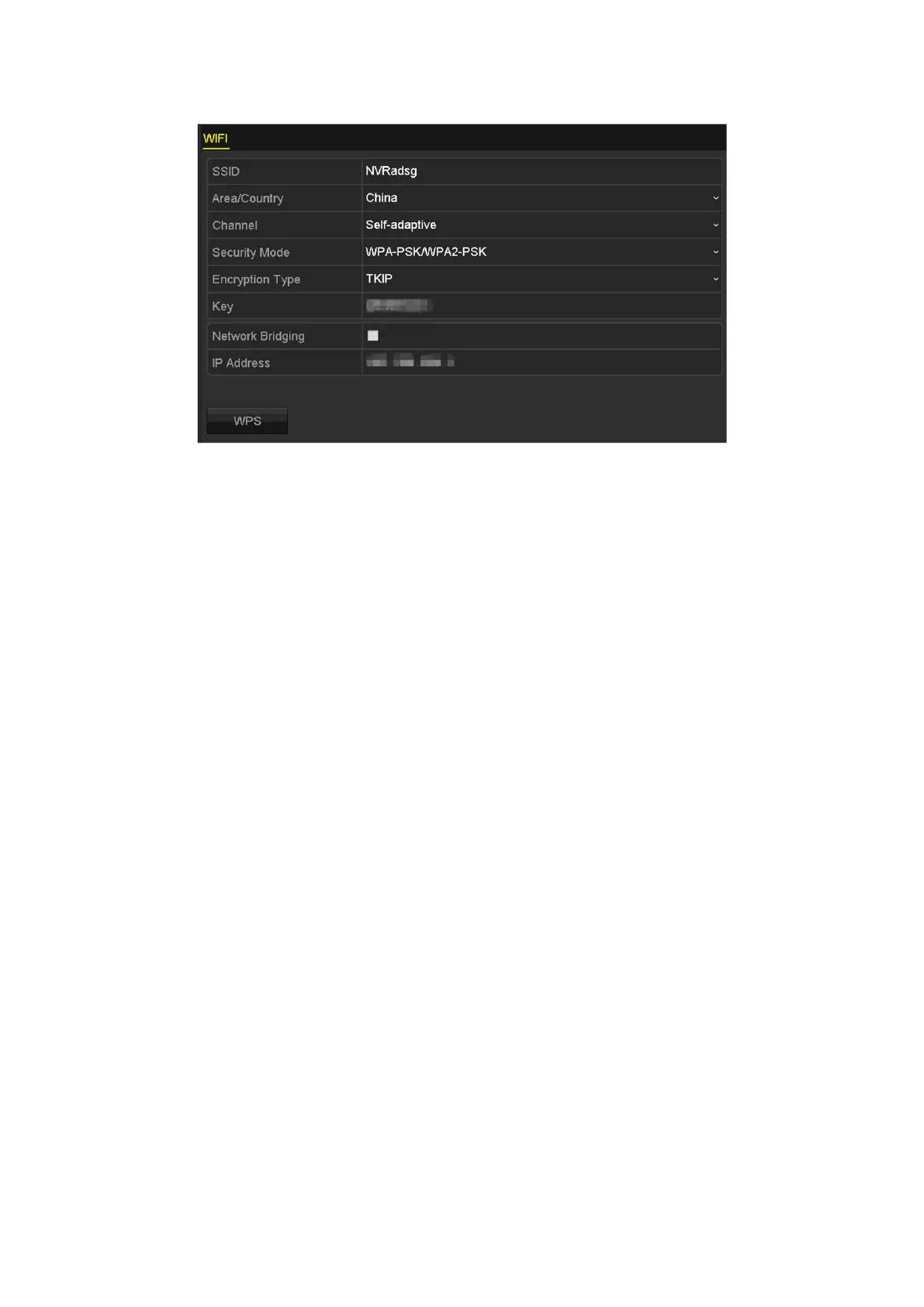

Figure 3-6 Wi-Fi Settings
2. Configure wireless network parameters, including Network Bridging, SSID, Security Mode, and
Key.
Network Bridging
Enable device to create a single aggregate network from multiple communication networks
or network segments.
SSID
It is the short for Service Set Identifier. SSID is the Wi-Fi name that the device provides.
Area/Country
Select where the router is used.
Channel
Select the best channel according to your situation.
Security Mode
Select the security protocol for the wireless network.
Encryption Type
It is used to protect information. TKIP and AES are selectable.
Key
Enter the encryption key.
WPS
It is the short of Wi-Fi Protected Setup. Click the button and then you can connect the
wireless network without password for once.
3. Click Apply to save the settings.
