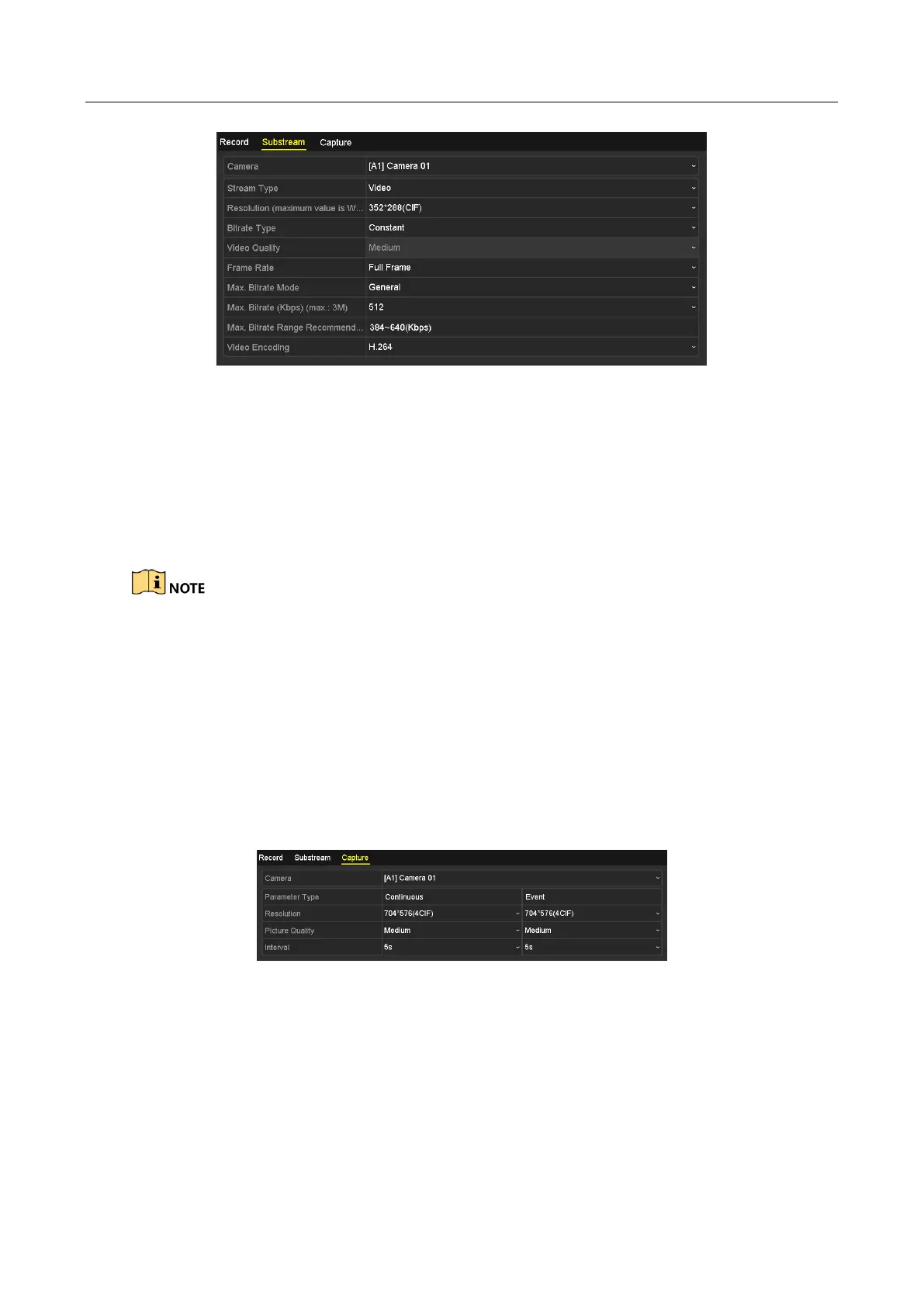

Figure 5-6 Sub-Stream Encoding
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

For DS-7200/7300/7600/8100/9000HUHI-F/N series, when 3 MP signal input is connected,
the resolution of sub-stream does not support QVGA/QCIF. It will adjust to CIF
automatically in this condition.

For DS-7200/7300/7600/8100/9000HUHI-F/N series, when 3 MP signal input is connected,
the frame rate of sub-stream cannot exceed 15 fps.

For HQHI-F/N series, when 3 MP signal input is connected, the frame rate of sub-stream
cannot exceed 12 fps.
Step 2 Set parameters for capture.
1) Select the Capture tab.
Figure 5-7 Capture Settings
2) Select a camera in the camera dropdown list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
